| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 61G008 130 2 |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 8 |
| Mount Type: | Panel Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP67 |
| Mating Type: | Screw |
| Mating Cycles: | 500 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 100 V |
| SKU: | AMEC091 61G008 130 2 |
C091 61G008 130 2
Specifications
Detailed Description

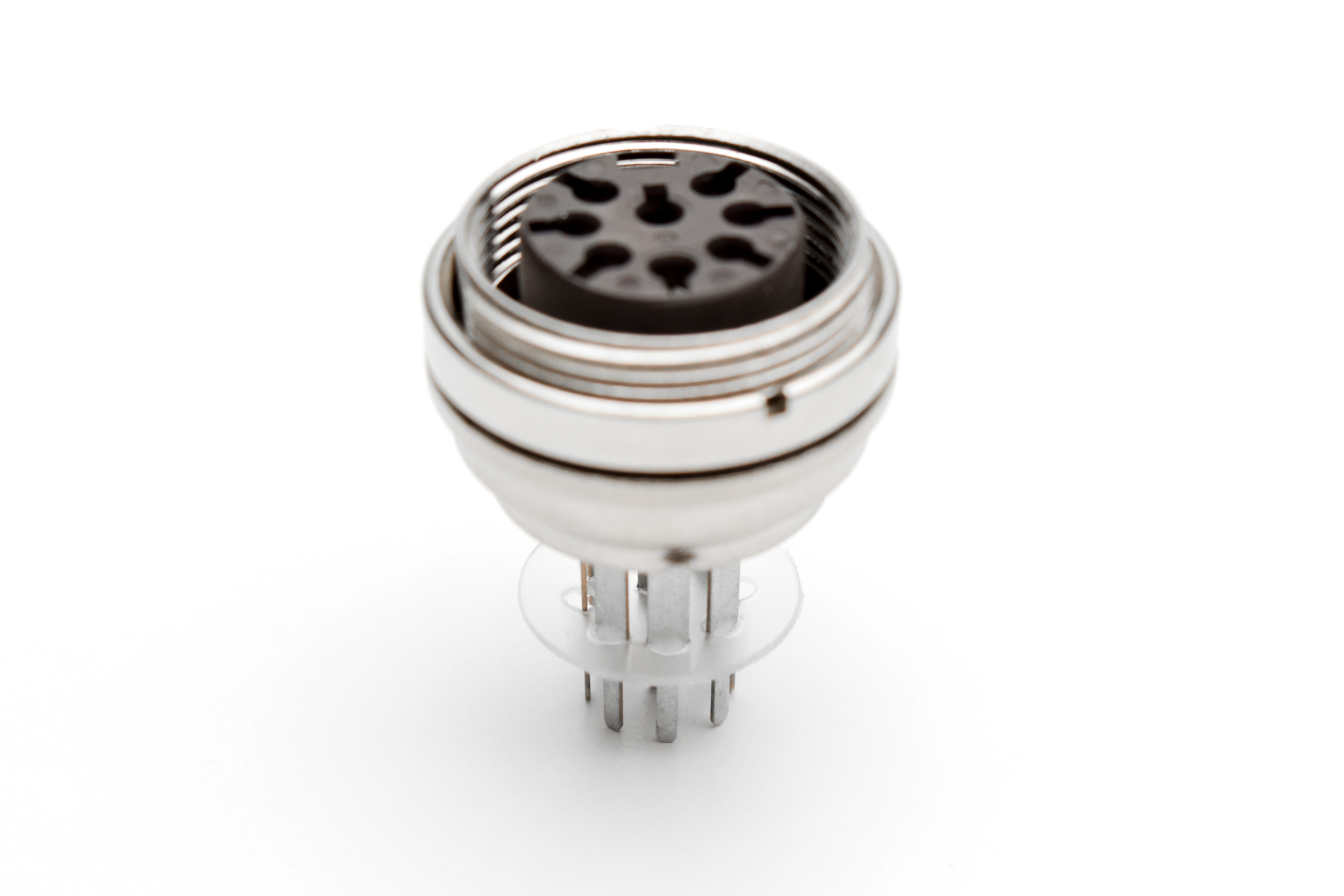

The C091 61G008 130 2 is a high-performance rear mounting female metal receptacle D connector designed for demanding industrial applications. With a rugged die-cast zinc housing and IP67 rating, it ensures reliable operation even in harsh environments. Featuring 8 contacts with silver contact plating, this connector offers excellent conductivity and signal integrity. The panel mount installation with solder termination method guarantees secure and stable connectivity. Rated for a wide temperature range from -40°C to 100°C, it is suitable for use in diverse operating conditions. With a mating type of screw and 500 mating cycles durability, it ensures long-lasting performance. RoHS compliant and rated for 100V/7A, this connector meets high industry standards. Suitable for 20 AWG wire size, it is ideal for circular DIN connector applications, making it a versatile and essential component for industrial connectivity needs.
