| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 61N003 130 2 |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 3 |
| Mount Type: | Panel Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP67 |
| Mating Type: | Screw |
| Mating Cycles: | 500 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 10 A |
| Voltage Rating: | 300 V |
| SKU: | AMEC091 61N003 130 2 |

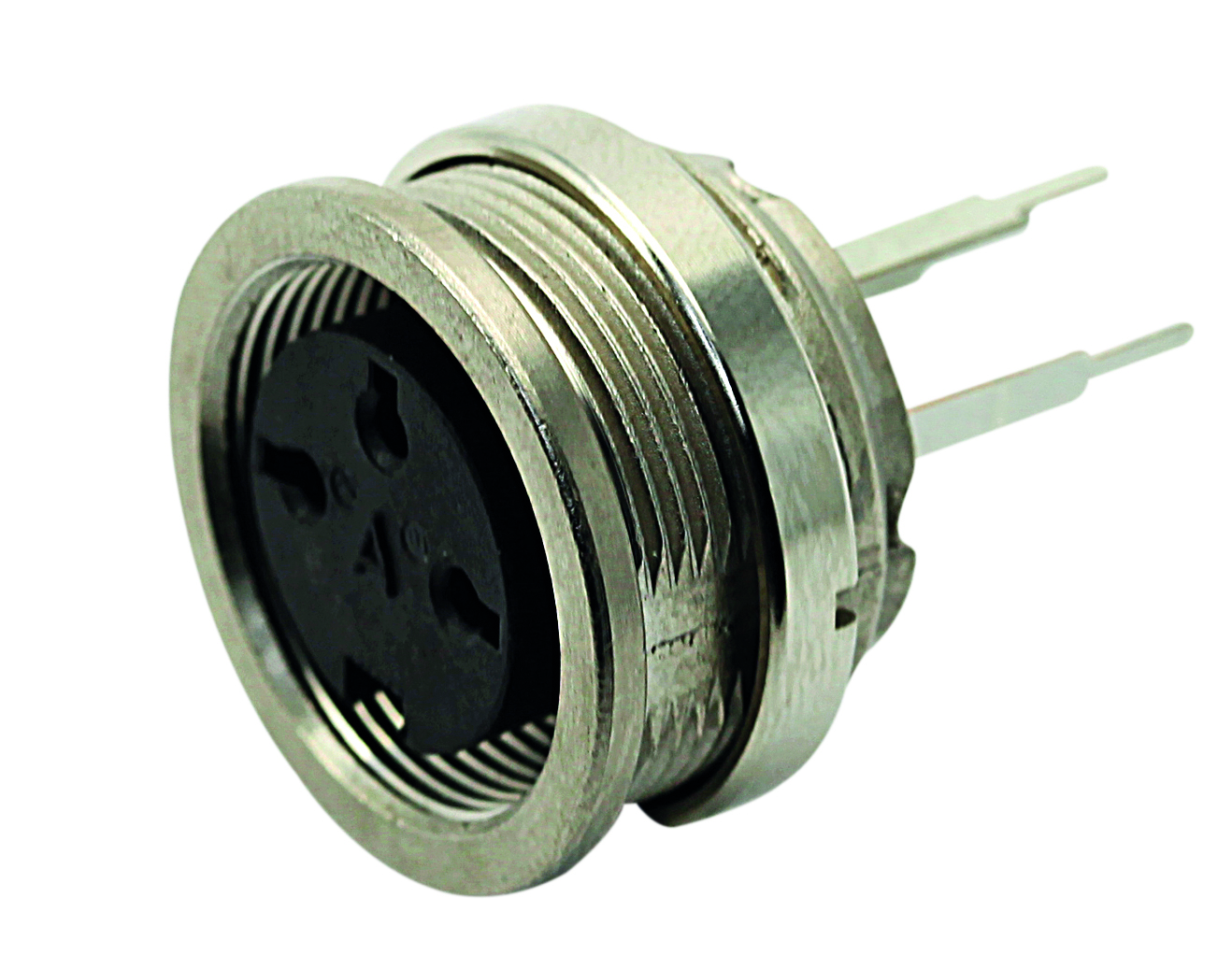

C091 61N003 130 2
Specifications
Detailed Description
Introducing the C091 61N003 130 2, a rugged and reliable Circular DIN Connector designed for demanding industrial applications. With a robust Die Cast Zinc housing and an IP67 rating for waterproof and dustproof protection, this connector ensures reliable performance in harsh environments. Featuring three silver-plated contacts with solder termination, it offers secure and efficient connectivity. Rated for up to 10A and 300V, it is suitable for power and signal transmission. With a wide operating temperature range of -40°C to 100°C and a mating cycle of 500, this connector guarantees long-lasting durability. RoHS compliant and suitable for female gender application, it is ideal for use in various industrial settings. Upgrade your connectivity with the C091 61N003 130 2 Circular DIN Connector.
