| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C146 10A024 000 1 |
| Color: | Gray |
| Series: | Heavymate® E |
| Gender: | Male |
| Housing Material: | Polycarbonate |
| Number of Contacts: | 25 |
| Termination Method: | Crimp |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP20 |
| Contact Size: | E24 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 0.14 - 2.5 mm² |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 16 A |
| Voltage Rating: | 500 V |
| SKU: | AMEC146 10A024 000 1 |

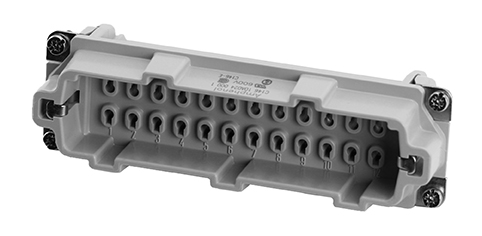

C146 10A024 000 1
Specifications
Detailed Description
Introducing the C146 10A024 000 1 connector, a reliable and durable solution for heavy-duty power applications. This male connector, part of the Heavymate® E series, features a robust polycarbonate housing and brass contacts with silver plating, ensuring high conductivity and longevity. With a maximum operating temperature of 125 °C and an IP20 rating for protection against dust and moisture, it is suitable for harsh environments. The 25 contacts, terminated via crimping, accommodate wire sizes ranging from 0.14 to 2.5 mm², with a current rating of 16 A and voltage rating of 500 V. Meeting UL 94V-0 flammability standards, it guarantees safety. While not RoHS compliant, its reliability is proven with a mating cycle of 500. Perfect for power connectors, this product is a must-have for industrial applications requiring secure and efficient power transmission.
