| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C146 10A024 002 1 |
| Color: | Gray |
| Series: | Heavymate® E |
| Gender: | Male |
| Housing Material: | Polycarbonate |
| Number of Contacts: | 25 |
| Termination Method: | Screw |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP20 |
| Contact Size: | E24 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 0.14 - 2.5 mm² |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 16 A |
| Voltage Rating: | 500 V |
| SKU: | AMEC146 10A024 002 1 |

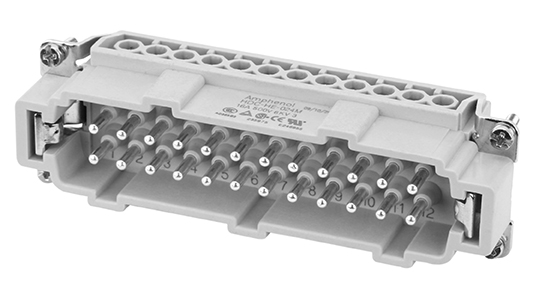

C146 10A024 002 1
Specifications
Detailed Description
Introducing the C146 10A024 002 1, a robust PIN MODULE designed for heavy-duty power connectivity. Featuring 24 male contacts without E, this gray module is part of the Heavymate® E series, ensuring reliable performance in demanding industrial environments. Crafted from durable polycarbonate housing, it offers secure screw termination with brass contacts plated in silver for optimal conductivity. With a wide operating temperature range from -40°C to 125°C and an IP20 rating, it guarantees dependable operation even in harsh conditions. RoHS compliant and UL 94V-0 rated for safety, this connector accommodates wire sizes ranging from 0.14 to 2.5 mm². With a current rating of 16A and voltage rating of 500V, it's perfect for high-power applications. The C14610A0240021 is a must-have component for power systems that prioritize performance and durability.
