| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C146 10A024 102 1 |
| Color: | Gray |
| Series: | Heavymate® E |
| Gender: | Male |
| Housing Material: | Polycarbonate |
| Number of Contacts: | 25 |
| Termination Method: | Screw |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP20 |
| Contact Size: | E24 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 0.14 - 2.5 mm² |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 16 A |
| Voltage Rating: | 500 V |
| SKU: | AMEC146 10A024 102 1 |

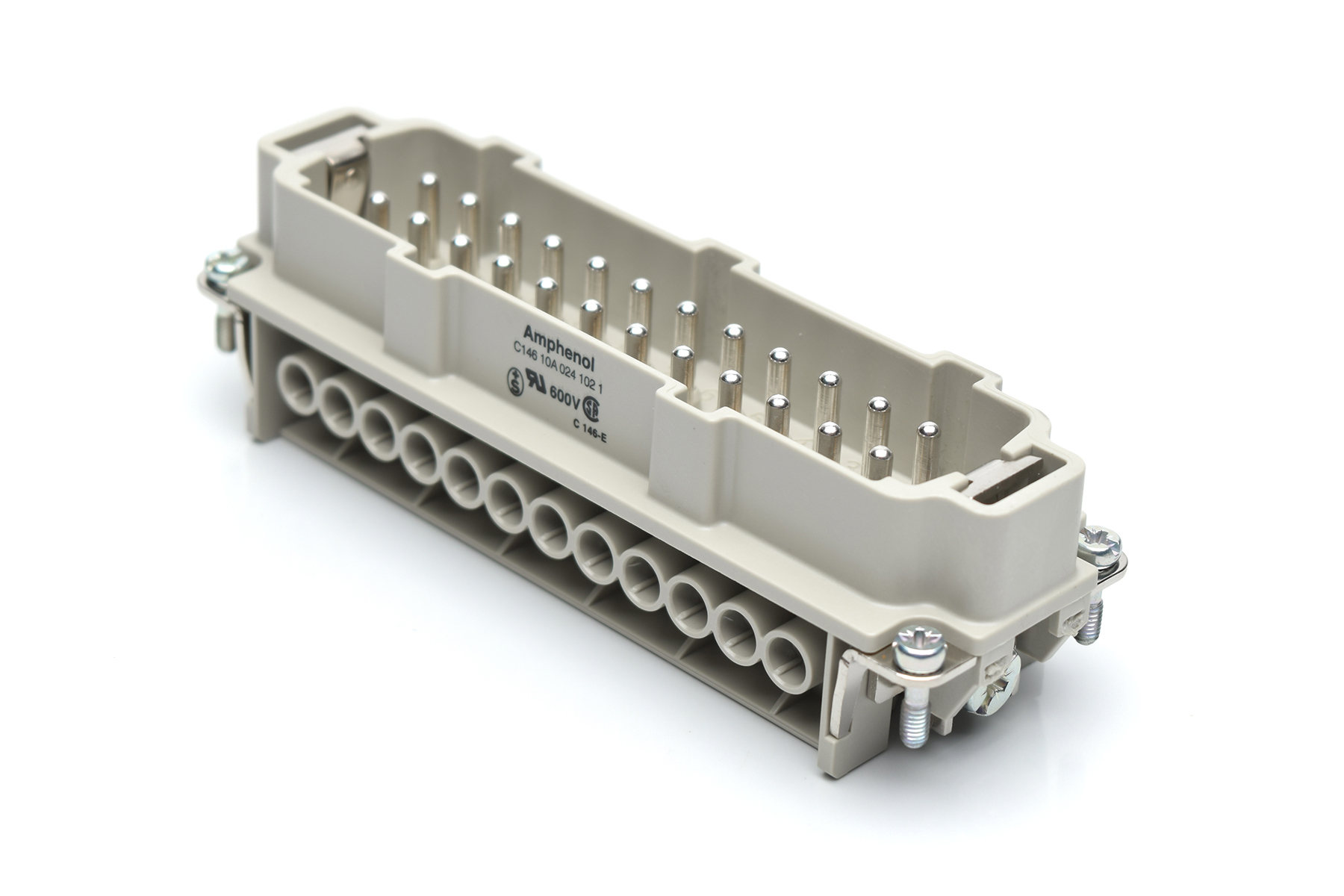

C146 10A024 102 1
Specifications
Detailed Description
Introducing the C146 10A024 102 1, a robust male connector from the Heavymate® E series designed for heavy-duty power applications. Crafted from durable polycarbonate housing with 25 brass contacts plated in silver, this connector ensures reliable conductivity in even the harshest environments. Featuring a screw termination method for secure installation, it offers a wide operating temperature range from -40 to 125 °C and a voltage rating of 500 V. With a current rating of 16 A and RoHS compliance, it guarantees both performance and environmental responsibility. Suitable for wire sizes ranging from 0.14 to 2.5 mm², it's ideal for industrial settings. Rated IP20 for protection against solid objects, it meets stringent safety standards with a flammability rating of UL 94V-0. With a contact size of E24 and 500 mating cycles, this connector is built to last, making it a crucial component in power distribution systems.
