| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C146 10A025 000 2 |
| Color: | Gray |
| Gender: | Male |
| IP Rating: | IP20 |
| Wire Size: | 0.14 - 2.5 mm² |
| Contact Size: | A16 |
| Mating Cycles: | 500 cycle |
| Current Rating: | 10 A |
| Voltage Rating: | 250 V |
| Contact Plating: | Gold, Silver |
| Contact Material: | Brass |
| Housing Material: | Glass-Filled Polycarbonate |
| Number of Contacts: | 26 |
| Termination Method: | Crimp |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| Series: | Heavymate® D |
| SKU: | AMEC146 10A025 000 2 |
C146 10A025 000 2
Specifications
Detailed Description

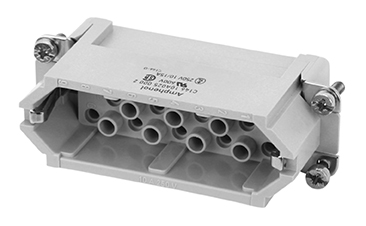

The AMPHENOL C146 10A025 000 2 is a robust PIN INSERT designed for heavy-duty power connectivity in industrial applications. Featuring a 25-way male connector with a durable Glass-Filled Polycarbonate housing, it ensures reliable performance in demanding environments. With 26 gold and silver-plated brass contacts, this connector offers high conductivity and corrosion resistance. Its crimp termination method allows for secure wire connections, accommodating a wire size range of 0.14 to 2.5 mm². Rated for a maximum operating temperature of 125°C and meeting IP20 ingress protection standards, it guarantees safe and efficient operation. UL 94V-0 flammability rating and RoHS compliance further enhance its reliability. With a current rating of 10 A and voltage rating of 250 V, the C146 connector is ideal for power transmission tasks. Its 500 mating cycles ensure long-term durability, making it a dependable choice for industrial power applications.
