| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C146 10B007 000 2 |
| Color: | Gray |
| Series: | Heavymate® D |
| Gender: | Female |
| Housing Material: | Polybutylene Terephthalate |
| Number of Contacts: | 8 |
| Termination Method: | Crimp |
| Contact Material: | Brass |
| Contact Plating: | Gold, Silver |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP20 |
| Contact Size: | A4 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 0.14 - 2.5 mm² |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 16 A |
| Voltage Rating: | 250 V |
| SKU: | AMEC146 10B007 000 2 |

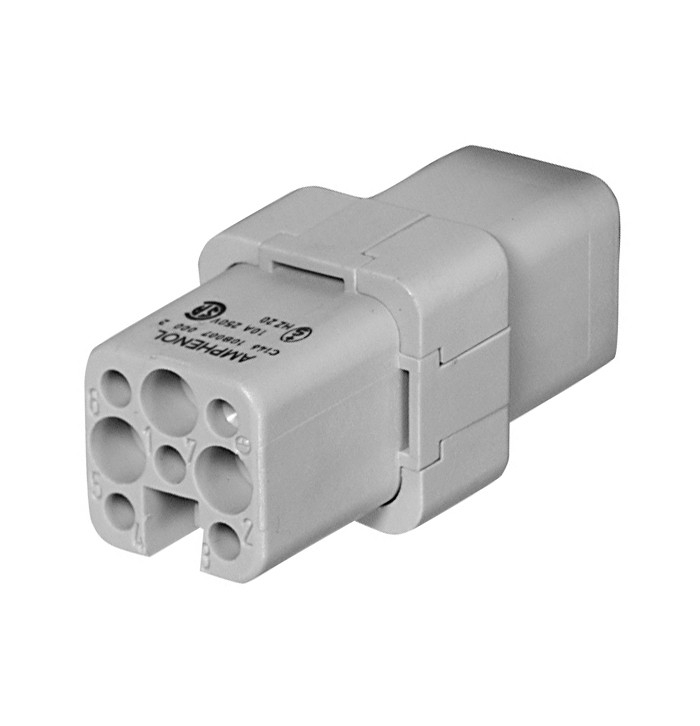

C146 10B007 000 2
Specifications
Detailed Description
The C146 10B007 000 2 is a female connector from the Heavymate® D series, designed for heavy-duty power applications. Featuring a durable Polybutylene Terephthalate housing, this connector is built to withstand harsh industrial environments. With 8 gold and silver-plated brass contacts, it ensures reliable and low-resistance signal transmission. Its crimp termination method allows for easy and secure installation, while its IP20 rating provides protection against dust and debris. Operating between -40°C and 125°C, it is suitable for a wide range of temperature conditions. With a current rating of 16A and a voltage rating of 250V, it is capable of handling high power loads. UL 94V-0 rated for flammability, it meets strict safety standards. Suitable for wire sizes ranging from 0.14 to 2.5mm², it offers versatility in connectivity options. With a mating cycle of 500 cycles, it ensures long-term durability. Although not RoHS compliant, it adheres to high-quality standards. Perfect for industrial power applications, this connector is a reliable choice for your connectivity needs.
