| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C146 10B040 000 2 |
| Color: | Gray |
| Series: | Heavymate® D |
| Gender: | Female |
| Housing Material: | Glass-Filled Polycarbonate |
| Number of Contacts: | 41 |
| Termination Method: | Crimp |
| Contact Material: | Brass |
| Contact Plating: | Gold, Silver |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP20 |
| Contact Size: | E16 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 0.14 - 2.5 mm² |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 10 A |
| Voltage Rating: | 250 V |
| SKU: | AMEC146 10B040 000 2 |
C146 10B040 000 2
Specifications
Detailed Description

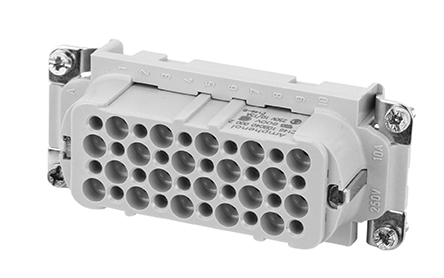

The C146 10B040 000 2 SOCKET INSERT 40 WAY in Gray is a crucial component for Heavy Duty Power Connectors, specifically designed for demanding industrial applications. Featuring a robust Glass-Filled Polycarbonate housing, this female insert ensures reliable connectivity in harsh environments. With 41 gold and silver-plated brass contacts supporting wire sizes from 0.14 to 2.5 mm², it guarantees efficient power transmission at a maximum operating temperature of 125 °C. Rated for 10 A and 250 V, with IP20 protection and UL 94V-0 flammability rating, this insert meets stringent safety standards. Designed for 500 mating cycles, it offers long-lasting performance. Compliant with RoHS regulations, the C146 10B040 000 2 is a high-quality solution for power distribution systems.
