| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C146 10B072 000 9 |
| Color: | Gray |
| Series: | Heavymate® DD |
| Gender: | Female |
| Housing Material: | Polycarbonate |
| Number of Contacts: | 73 |
| Termination Method: | Crimp |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP20 |
| Contact Size: | E16 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 0.14 - 2.5 mm² |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 10 A |
| Voltage Rating: | 250 V |
| SKU: | AMEC146 10B072 000 9 |
C146 10B072 000 9
Specifications
Detailed Description

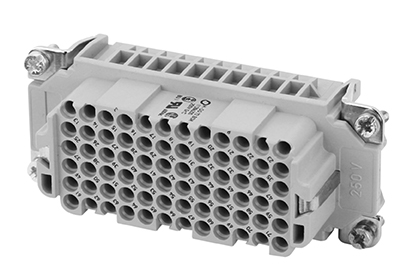

The SOCKET INSERT 72 WAY, part of the Heavymate® DD series, offers high-performance connectivity with its female gender design and durable polycarbonate housing material. Featuring 73 contacts with crimp termination method, each contact made of brass with silver plating ensures reliable conductivity. With a wide operating temperature range from -40 °C to 125 °C and IP20 rating, it guarantees functionality in various environments. The E16 contact size accommodates wire sizes from 0.14 to 2.5 mm², while UL 94V-0 flammability rating ensures safety. With a current rating of 10 A and voltage rating of 250 V, it is suitable for heavy-duty power applications. RoHS compliant and offering 500 mating cycles, this connector is reliable and efficient for industrial use.
