| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C14610N0165082 |
| Series: | Heavymate® |
| Housing Material: | Nylon |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP65 |
| Thread Size: | M32 |
| Mating Type: | Lever |
| Seal Material: | Acrylonitrile Butadiene Rubber |
| Housing Color: | Gray |
| Cable Entry: | Side |
| Finish: | Powder Coated |
| Product Type: | Housing |
| Cable Entry Points: | 1 |
| SKU: | AMEC14610N0165082 |
C14610N0165082
Specifications
Detailed Description

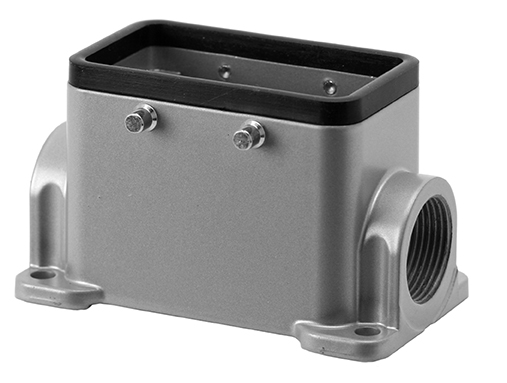

Introducing the C14610N0165082, a rugged and durable Heavy Duty Power Connector Housing from the Heavymate® series. Constructed with high-quality Nylon housing material, this IP65-rated connector is designed to withstand extreme operating conditions, with a wide temperature range of -40°C to 100°C. Featuring a M32 thread size and lever mating type for secure connections, it ensures reliable power transmission. The gray housing with a powder-coated finish not only offers a sleek look but also provides added protection. With a single side cable entry point and Acrylonitrile Butadiene Rubber seal material, it guarantees a tight and secure fit for cables. Perfect for industrial applications, this connector is a must-have for any heavy-duty power setup.
