| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C146 A03 001 E8 |
| Color: | Black |
| Series: | Heavymate® M |
| Gender: | Male |
| Housing Material: | Nylon |
| Number of Contacts: | 3 |
| Termination Method: | Crimp |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP20 |
| Contact Size: | 3.6 mm |
| Mating Cycles: | 500 cycle |
| Wire Size: | 1.5 - 10 mm² |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 40 A |
| Voltage Rating: | 630 V |
| SKU: | AMEC146 A03 001 E8 |

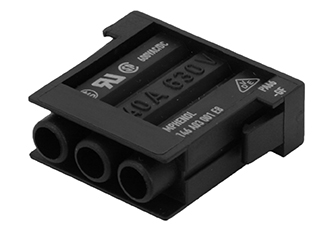

C146 A03 001 E8
Specifications
Detailed Description
Introducing the C146 A03 001 E8, a rugged and reliable connector perfect for heavy-duty power applications. Featuring a sleek black design and crafted from durable nylon, this connector is designed to withstand harsh environments. With three brass contacts plated in silver, it ensures optimal conductivity even in high-temperature settings, with a wide operating range from -40°C to 125°C. Its IP20 rating offers protection against dust and debris, while its UL 94V-0 flammability rating guarantees safety. Offering crimp termination and accommodating wire sizes from 1.5 to 10 mm², it is easy to install and suitable for a variety of power applications. With a current rating of 40 A and a voltage rating of 630 V, it delivers high performance. RoHS compliant and with a mating cycle of 500, this connector is not only efficient but also environmentally friendly. Perfect for industrial and commercial use, the C146 A03 001 E8 is a must-have for any project requiring reliable power connectivity.
