| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems EP-4-12B |
| Series: | EP |
| Gender: | Male |
| Housing Material: | Die-Cast Zinc Alloy |
| Number of Contacts: | 4 |
| Termination Method: | Solder |
| Contact Material: | Brass |
| Contact Plating: | Bright Tin |
| Maximum Operating Temperature: | 75 °C |
| Minimum Operating Temperature: | -25 °C |
| IP Rating: | IP40 |
| Housing Color: | Black |
| Mating Cycles: | 1000 cycle |
| Wire Size: | 12 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 20 A |
| Voltage Rating: | 660 V |
| SKU: | AMEEP-4-12B |

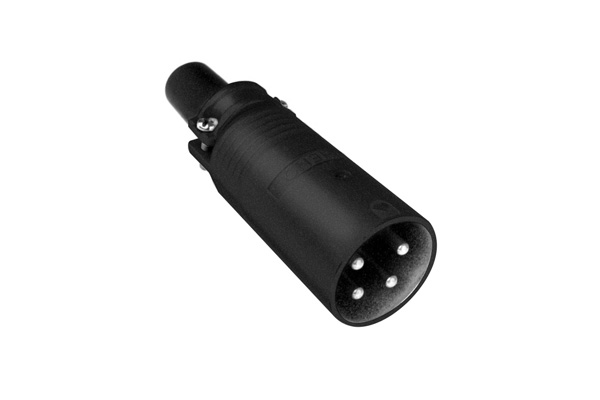

EP-4-12B
Specifications
Detailed Description
Introducing the EP-4-12B, a robust 4 Pole Male Metal Loudspeaker Cable Connector designed for high-performance audio applications. Featuring durable Die Cast Zinc Alloy housing in a sleek Black Finish, this connector ensures reliable signal transmission. The machined Brass contacts with Bright Tin plating offer optimal conductivity, while the IP40 rating guarantees protection against dust and debris. With a wide operating temperature range from -25°C to 75°C, it is suitable for various environments. The EP-4-12B is ROHS compliant and UL 94V-0 rated, meeting international standards for safety and environmental responsibility. Perfect for professional audio setups, this connector accommodates 12 AWG wire size and can handle up to 20A of current at 660V voltage rating. Trust in the EP-4-12B for secure and efficient loudspeaker connections in any audio, video, or broadcast system.
