| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems EP-4-14B |
| Series: | EP |
| Gender: | Male |
| Housing Material: | Die-Cast Zinc Alloy |
| Number of Contacts: | 4 |
| Mount Type: | Chassis Mount |
| Termination Method: | Solder |
| Contact Material: | Brass |
| Contact Plating: | Bright Tin |
| Maximum Operating Temperature: | 75 °C |
| Minimum Operating Temperature: | -25 °C |
| IP Rating: | IP40 |
| Housing Color: | Black |
| Mating Cycles: | 1000 cycle |
| Wire Size: | 12 AWG |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 20 A |
| Voltage Rating: | 660 V |
| SKU: | AMEEP-4-14B |

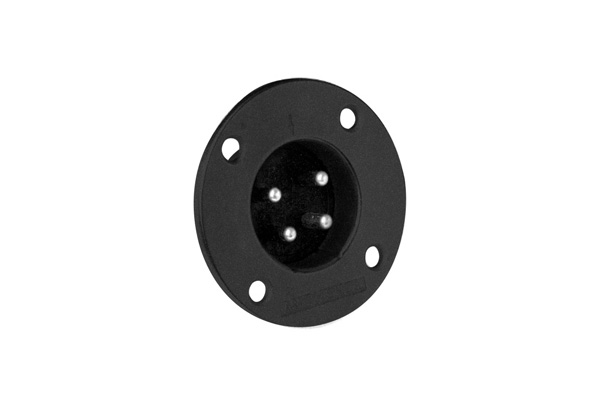

EP-4-14B
Specifications
Detailed Description
The EP-4-14B is a robust Loudspeaker Chassis Mount connector designed for optimal audio performance. Featuring a durable Die Cast Zinc Alloy housing in a sleek Black finish, this connector ensures reliable signal transmission in any setting. The machined Brass contacts with Bright Tin plating offer superior conductivity, while the solder termination method guarantees a secure connection. With a current rating of 20A and voltage rating of 660V, this connector is perfect for high-power audio applications. Its IP40 rating provides protection against dust and debris, making it suitable for various environments. Meeting RoHS compliance standards, the EP-4-14B is not only high-performing but also environmentally friendly, making it a top choice for professional audio setups.
