| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems MA1LAE1600S-KIT |
| Series: | M23 |
| Gender: | Female |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 16 |
| Mount Type: | Panel Mount |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 130 °C |
| Minimum Operating Temperature: | -20 °C |
| IP Rating: | IP67 |
| Shell Size: | M23 |
| Mating Type: | Threaded |
| Seal Material: | Dupont Viton |
| Shell Size - Insert Arrangement: | M23-16 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 28 - 18 AWG |
| Shell Finish: | Nickel Plated |
| Current Rating: | 9 A |
| Voltage Rating: | 125 V |
| SKU: | AMEMA1LAE1600S-KIT |
MA1LAE1600S-KIT
Specifications
Detailed Description

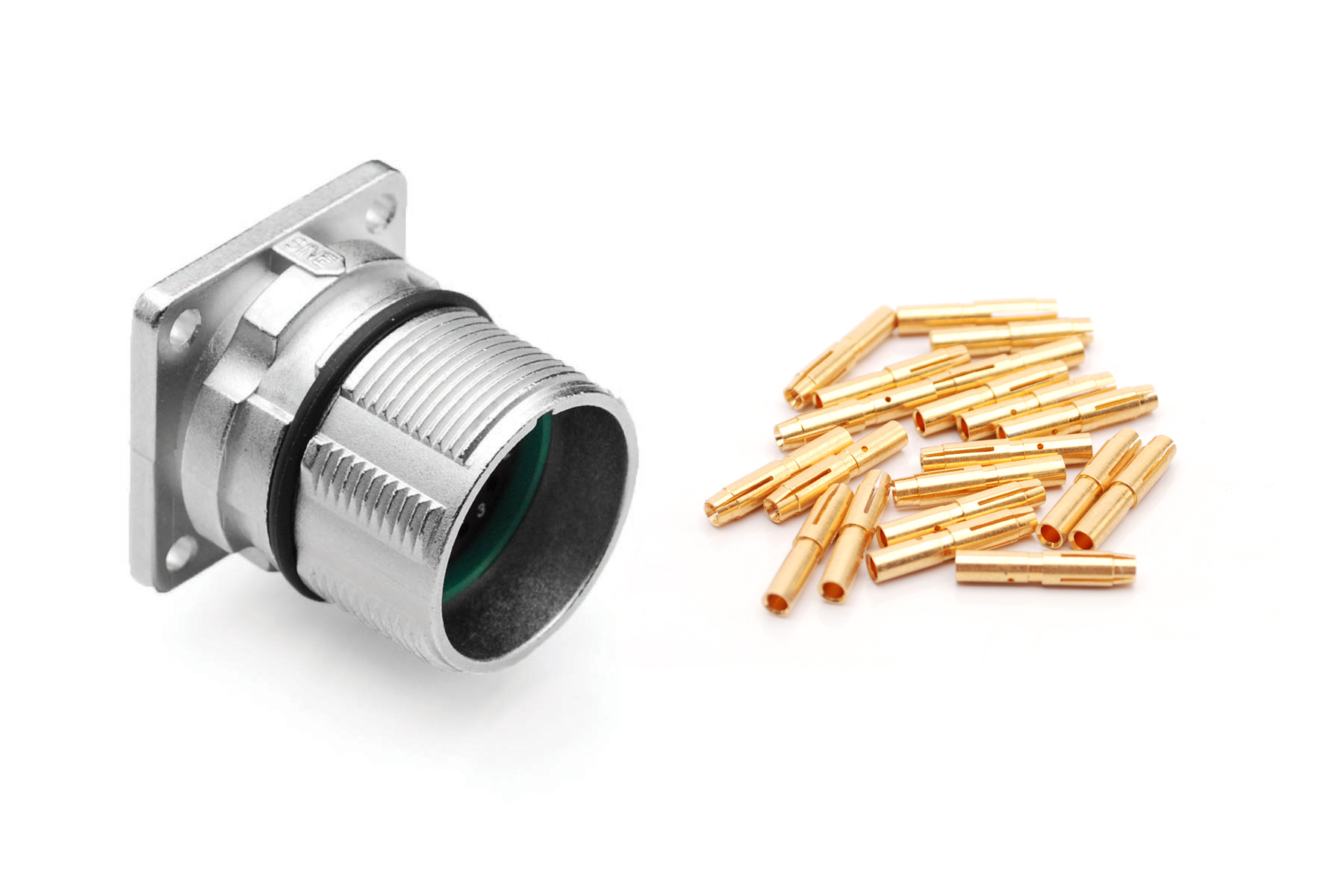

Introducing the MA1LAE1600S-KIT, a high-performance M23 female connector designed for demanding industrial applications. With a durable zinc die-cast housing and gold contact plating, this connector ensures reliable conductivity in harsh environments. Featuring 16 contacts and a panel mount design, it offers secure and efficient connectivity. Its wide operating temperature range of -20°C to 130°C, along with IP67 rating, guarantees performance in extreme conditions. The shell size M23 with threaded mating type and Dupont Viton seal material provides excellent durability and protection. With a maximum current rating of 9A and voltage rating of 125V, this connector is suitable for a wide range of power and signal transmission needs. Compliant with circular connector standards, it is ideal for use in industrial automation, machinery, and other rugged applications. Upgrade your connectivity solutions with the MA1LAE1600S-KIT.
