| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems MA1LAP1600-KIT |
| Series: | M23 |
| Gender: | Male |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 16 |
| Mount Type: | Panel Mount |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 130 °C |
| Minimum Operating Temperature: | -20 °C |
| IP Rating: | IP67 |
| Shell Size: | M23 |
| Mating Type: | Threaded |
| Seal Material: | Dupont Viton |
| Shell Size - Insert Arrangement: | M23-16 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 28 - 18 AWG |
| Shell Finish: | Nickel Plated |
| Current Rating: | 9 A |
| Voltage Rating: | 125 V |
| SKU: | AMEMA1LAP1600-KIT |
MA1LAP1600-KIT
Specifications
Detailed Description

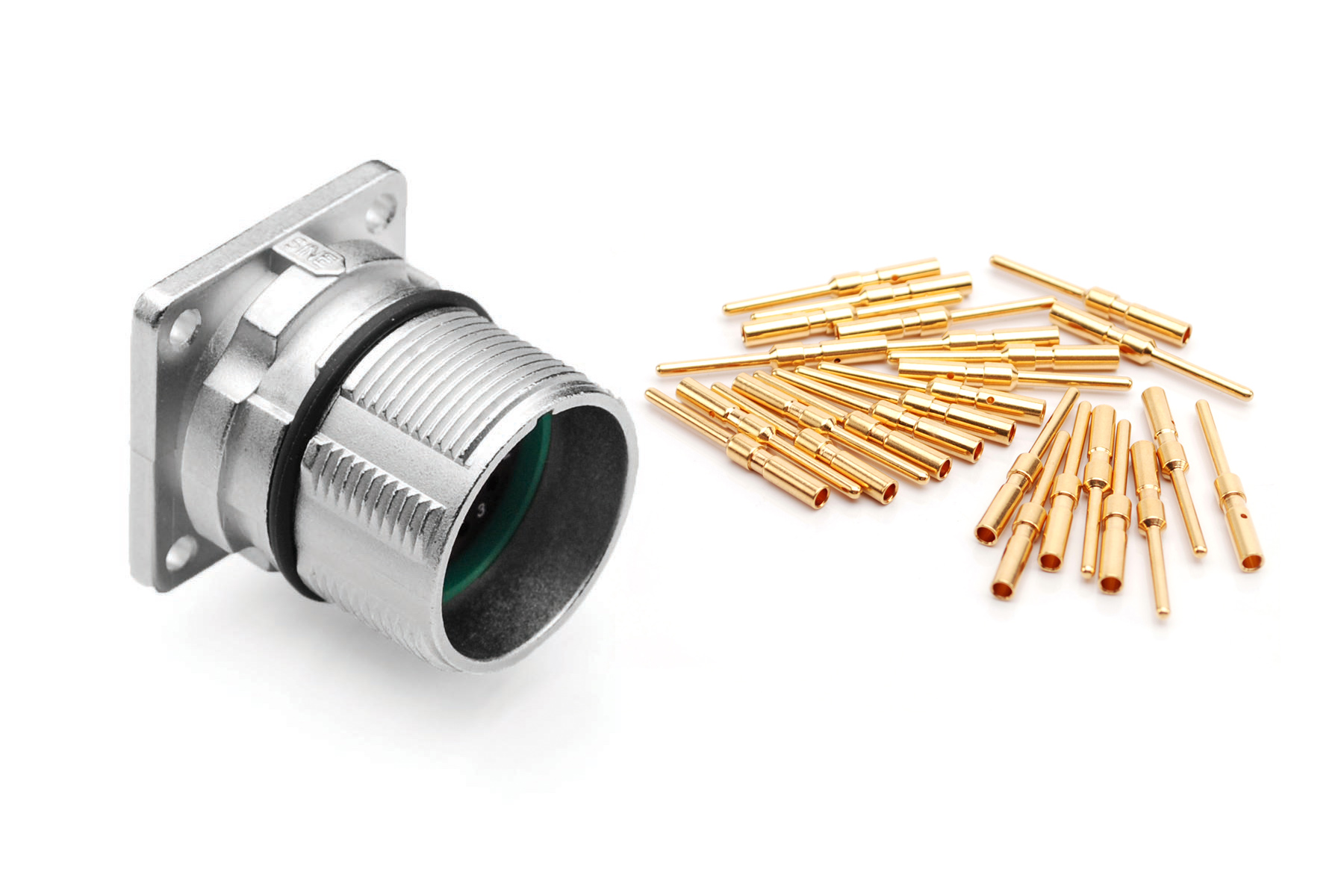

The MA1LAP1600-KIT M23 Male Circular Connector, featuring a robust Zinc Die Cast housing, is designed for reliable panel mount installations. With 16 gold-plated contacts, this connector ensures high conductivity and durability in a wide operating temperature range from -20°C to 130°C, meeting IP67 standards for dust and water resistance. The M23 shell size and threaded mating type guarantee secure connections, while the Dupont Viton seal material enhances longevity. Rated for 500 mating cycles, with wire sizes ranging from 28 to 18 AWG, and a current and voltage rating of 9A and 125V respectively, this connector is suitable for a variety of industrial applications. The nickel-plated shell finish not only enhances its aesthetic appeal but also provides added protection. Part of the M23 series, this connector is a reliable choice for demanding environments.
