| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems MA1LAP1600S-KIT |
| Series: | M23 |
| Gender: | Female |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 16 |
| Mount Type: | Panel Mount |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 130 °C |
| Minimum Operating Temperature: | -20 °C |
| IP Rating: | IP67 |
| Shell Size: | M23 |
| Mating Type: | Threaded |
| Seal Material: | Dupont Viton |
| Shell Size - Insert Arrangement: | M23-16 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 28 - 18 AWG |
| Shell Finish: | Nickel Plated |
| Current Rating: | 9 A |
| Voltage Rating: | 125 V |
| SKU: | AMEMA1LAP1600S-KIT |

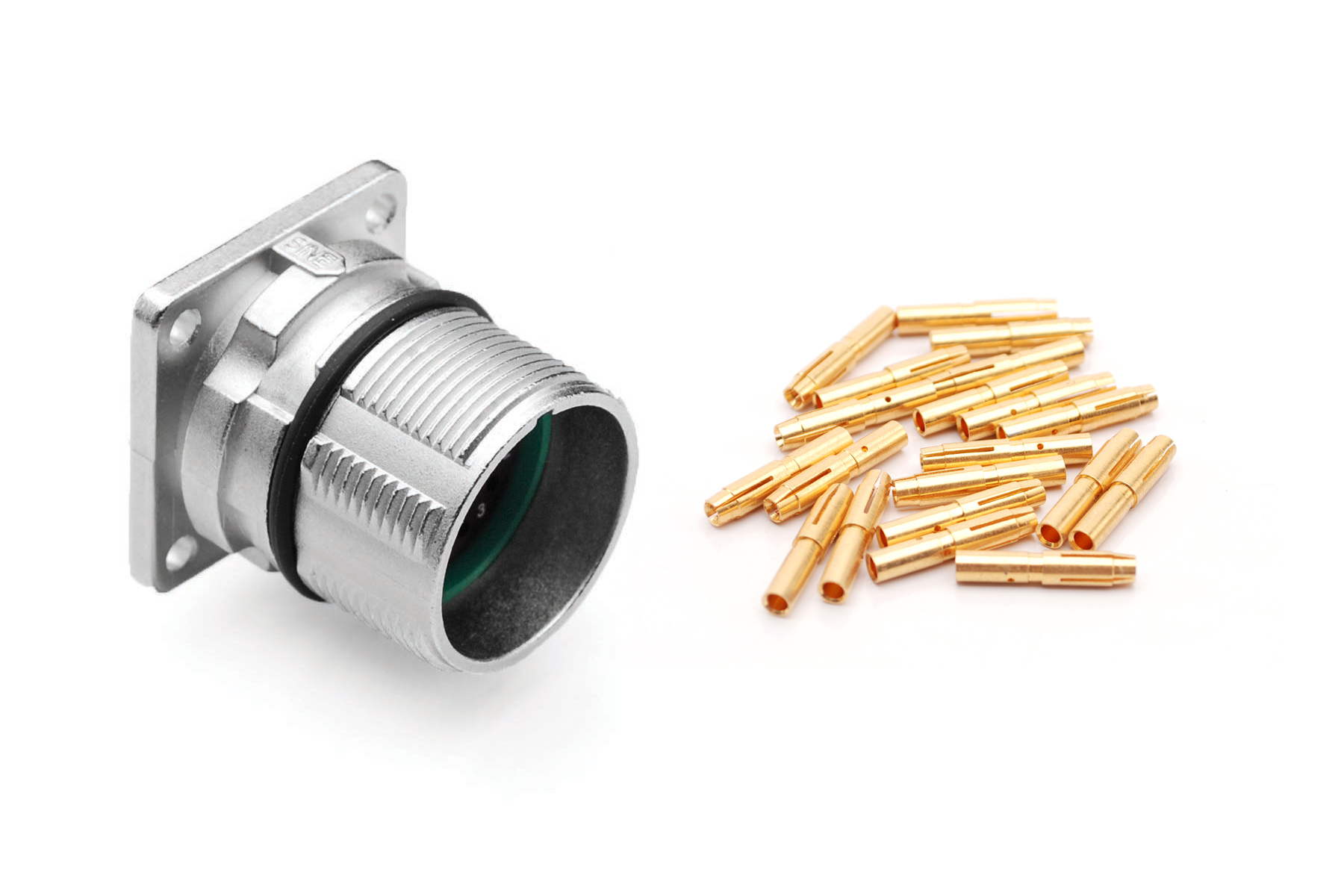

MA1LAP1600S-KIT
Specifications
Detailed Description
Introducing the MA1LAP1600S-KIT, a high-performance circular connector designed for demanding industrial applications. Featuring a durable zinc die cast housing with an IP67 rating, this female connector ensures reliable operation in harsh environments. With 16 gold-plated contacts, it offers excellent conductivity and signal integrity. Suitable for panel mounting, it can withstand temperatures ranging from -20 °C to 130 °C. The M23 shell size, threaded mating type, and Dupont Viton seal material guarantee secure and watertight connections. Rated for 500 mating cycles, this connector is built to last. Accommodating wire sizes from 28 to 18 AWG, it can handle currents up to 9 A and voltages up to 125 V. Perfect for use in aerospace, defense, and industrial applications, the MA1LAP1600SKIT is a reliable and efficient connectivity solution.
