| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems MA5RAE1202-KIT |
| Series: | M23 Elite Checkmate™ |
| Gender: | Male |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 12 |
| Termination Method: | Crimp |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 130 °C |
| Minimum Operating Temperature: | -20 °C |
| IP Rating: | IP67 |
| Shell Size: | M23 |
| Seal Material: | Dupont Viton |
| Shell Size - Insert Arrangement: | M23-12 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 28 - 18 AWG |
| Shell Finish: | Nickel Plated |
| Current Rating: | 10 A |
| Voltage Rating: | 160 V |
| SKU: | AMEMA5RAE1202-KIT |
MA5RAE1202-KIT
Specifications
Detailed Description

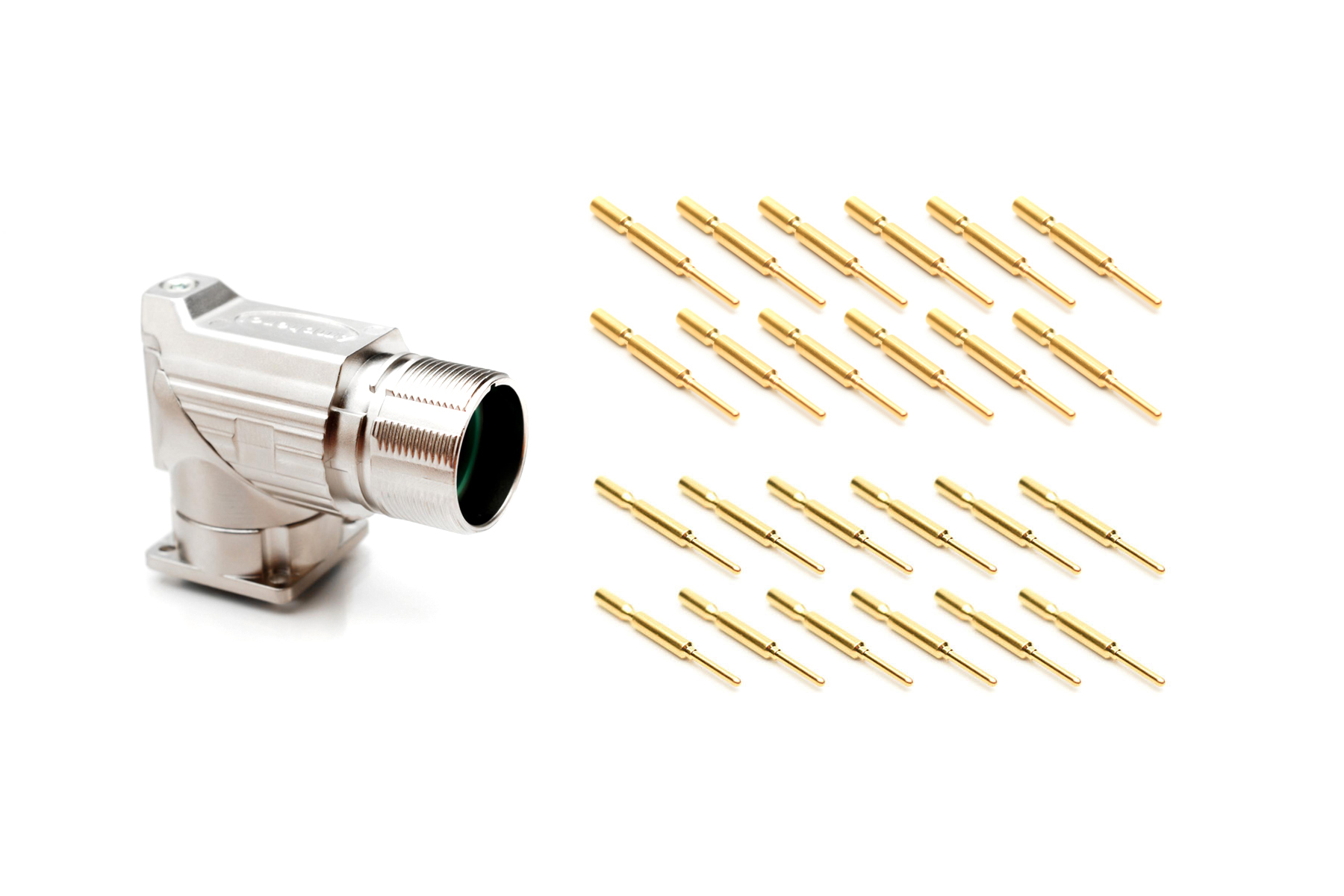

Introducing the M23 Elite Checkmate™ Male Rotatable Receptacle, SKU MA5RAE1202-KIT. This high-performance connector, with a housing made of durable Zinc Die Cast, features 12 gold-plated contacts for reliable signal transmission. Operating efficiently in temperatures ranging from -20°C to 130°C, and boasting an IP67 rating, it ensures optimal performance even in harsh environments. The Dupont Viton seal material guarantees a secure and waterproof connection. With a shell size of M23 and M23-12 insert arrangement, it offers easy and efficient crimp termination for 28-18 AWG wire sizes. Nickel-plated for enhanced durability, this connector has a current rating of 10A and voltage rating of 160V, making it ideal for a wide range of applications in industrial settings. With a mating cycle of 500, it ensures long-term reliability. Trust the M23 Elite Checkmate™ for seamless connectivity in your projects.
