| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems MA5RAE1601-KIT |
| Series: | M23 Elite Checkmate™ |
| Gender: | Male |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 16 |
| Termination Method: | Crimp |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 130 °C |
| Minimum Operating Temperature: | -20 °C |
| IP Rating: | IP67 |
| Shell Size: | M23 |
| Seal Material: | Dupont Viton |
| Shell Size - Insert Arrangement: | M23-16 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 28 - 18 AWG |
| Shell Finish: | Nickel Plated |
| Current Rating: | 9 A |
| Voltage Rating: | 125 V |
| SKU: | AMEMA5RAE1601-KIT |
MA5RAE1601-KIT
Specifications
Detailed Description

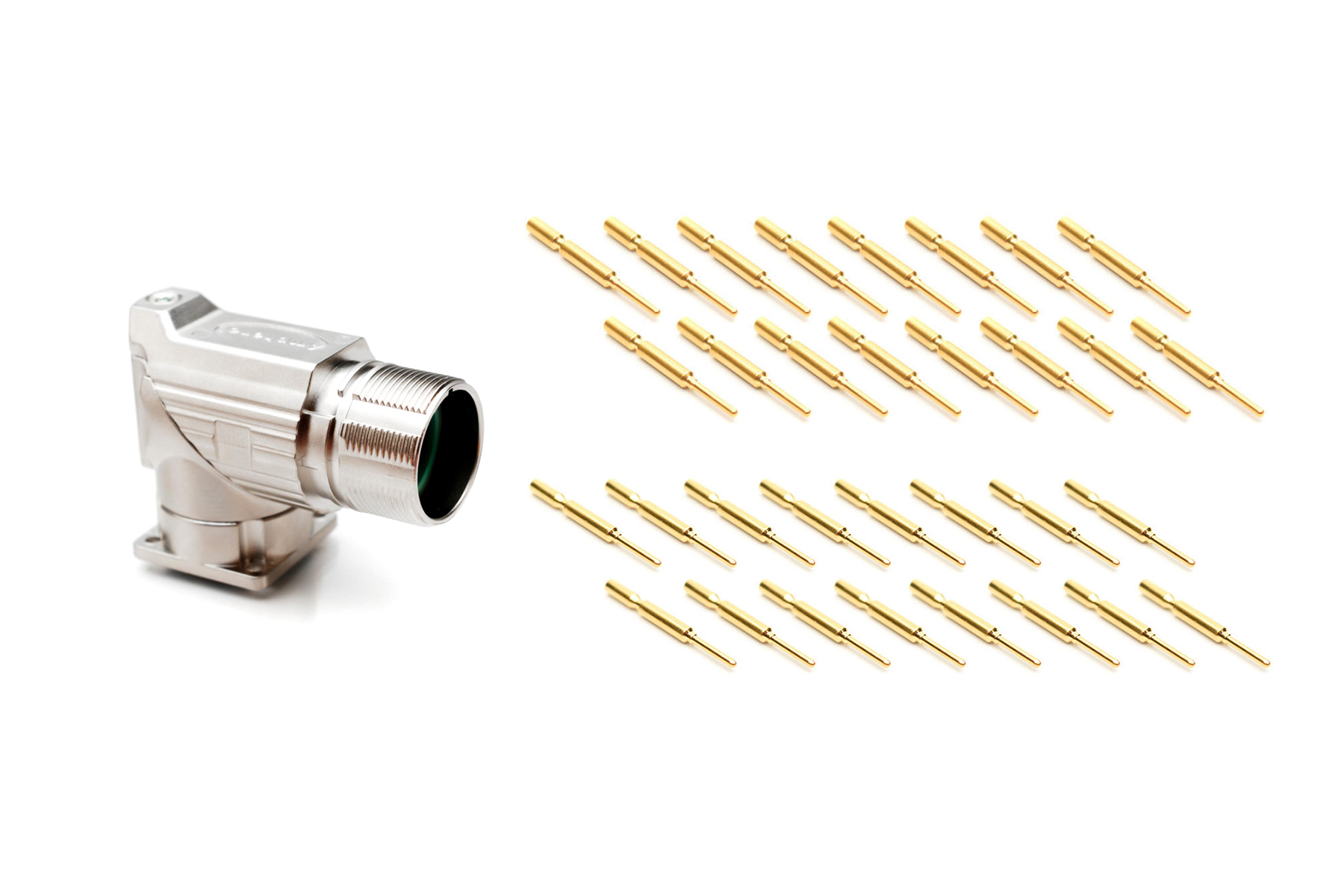

Introducing the M23 Elite Checkmate™ Male 90° Rotatable Receptacle, SKU MA5RAE1601-KIT. This high-performance connector features a durable Zinc Die Cast housing, perfect for industrial environments. With 16 gold-plated contacts and a crimp termination method, it ensures reliable and efficient connectivity. Operating between -20°C to 130°C, and with an IP67 rating, it offers exceptional versatility and protection. The Dupont Viton seal material guarantees a secure fit, while the Nickel Plated shell finish adds to its robustness. Suitable for wire sizes ranging from 28 to 18 AWG, it provides a current rating of 9A and voltage rating of 125V. With a mating cycle of 500 cycles, this connector is built to last, making it ideal for a wide range of applications in the industrial and commercial sectors. Explore the M23 Elite Checkmate™ series for premium circular connector solutions.
