| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems MA7RAP1701-KIT |
| Series: | M23 Elite |
| Gender: | Male |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 17 |
| Termination Method: | Crimp |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 130 °C |
| Minimum Operating Temperature: | -20 °C |
| IP Rating: | IP67 |
| Shell Size: | M23 |
| Mating Type: | Threaded |
| Seal Material: | Dupont Viton |
| Shell Size - Insert Arrangement: | M23-17 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 28 - 18 AWG |
| Shell Finish: | Nickel Plated |
| Current Rating: | 10 A |
| Voltage Rating: | 160 V |
| SKU: | AMEMA7RAP1701-KIT |

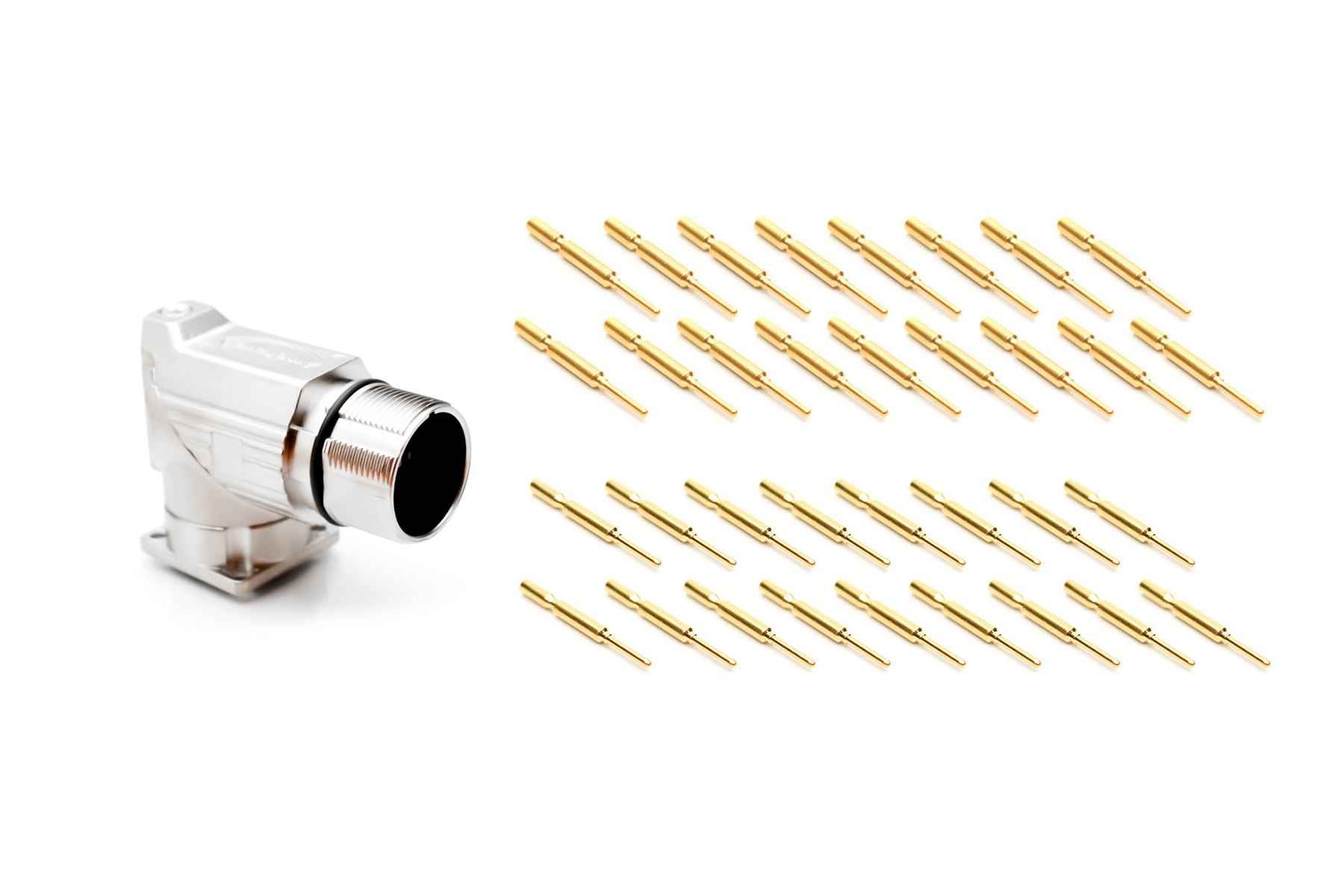

MA7RAP1701-KIT
Specifications
Detailed Description
Introducing the MA7RAP1701-KIT, a high-performance M23 male rotatable receptacle from the Elite series. With a robust zinc die-cast housing and gold contact plating, this connector ensures reliable signal transmission in demanding environments. Featuring 17 contacts and a crimp termination method, it offers secure and efficient connectivity. Operating flawlessly in temperatures ranging from -20°C to 130°C, and boasting an IP67 rating for dust and water resistance, this connector is perfect for industrial applications. The M23 shell size, threaded mating type, and Dupont Viton seal material guarantee a tight and durable connection. Suitable for wire sizes 28-18 AWG, with a nickel-plated shell finish, it provides a current rating of 10A and voltage rating of 160V. With a mating cycle of 500 cycles, this connector is designed for long-term use. Explore our Circular Connectors range to discover more high-quality connectivity solutions.
