| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems MA7RAP1701 |
| Series: | M23 Elite |
| Gender: | Female, Male |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 17 |
| Termination Method: | Crimp |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 130 °C |
| Minimum Operating Temperature: | -20 °C |
| IP Rating: | IP67 |
| Shell Size: | M23 |
| Mating Type: | Threaded |
| Seal Material: | EPDM, Vition Rubber |
| Shell Size - Insert Arrangement: | M23-17 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 28 - 18 AWG |
| Shell Finish: | Nickel Plated |
| Current Rating: | 9 A |
| Voltage Rating: | 125 V |
| SKU: | AMEMA7RAP1701 |

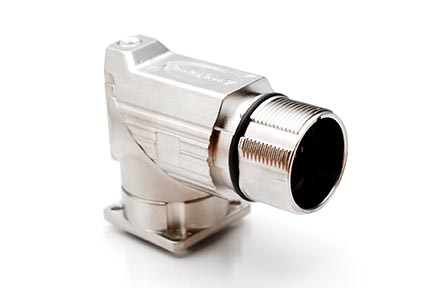

MA7RAP1701
Specifications
Detailed Description
Introducing the MA7RAP1701, a high-performance connector from the M23 Elite series designed for seamless connectivity in demanding environments. With a rugged Zinc Die Cast housing and Gold contact plating, this connector ensures reliable signal transmission even in harsh conditions. Featuring 17 contacts and a Crimp termination method, it offers secure and efficient connectivity for a wide range of applications. Its IP67 rating guarantees protection against dust and water ingress, while its wide operating temperature range of -20°C to 130°C makes it suitable for use in extreme climates. The M23 shell size and Threaded mating type provide easy and secure installation, while the Vition Rubber and EPDM seal materials ensure long-lasting durability. With a mating cycle of 500 cycles and RoHS compliance, this connector is not only reliable but also environmentally friendly. Suitable for wire sizes ranging from 28 to 18 AWG, it can handle current ratings of up to 9A and voltage ratings of 125V. The Nickel Plated shell finish adds to its robustness, making it ideal for industrial and commercial applications. Upgrade your connectivity with the MA7RAP1701, the perfect choice for demanding circular connector needs.
