| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems MA7RAP1701S-KIT |
| Series: | M23 Elite |
| Gender: | Female |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 17 |
| Termination Method: | Crimp |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 130 °C |
| Minimum Operating Temperature: | -20 °C |
| IP Rating: | IP67 |
| Shell Size: | M23 |
| Mating Type: | Threaded |
| Seal Material: | Dupont Viton |
| Shell Size - Insert Arrangement: | M23-17 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 28 - 18 AWG |
| Shell Finish: | Nickel Plated |
| Current Rating: | 10 A |
| Voltage Rating: | 160 V |
| SKU: | AMEMA7RAP1701S-KIT |
MA7RAP1701S-KIT
Specifications
Detailed Description

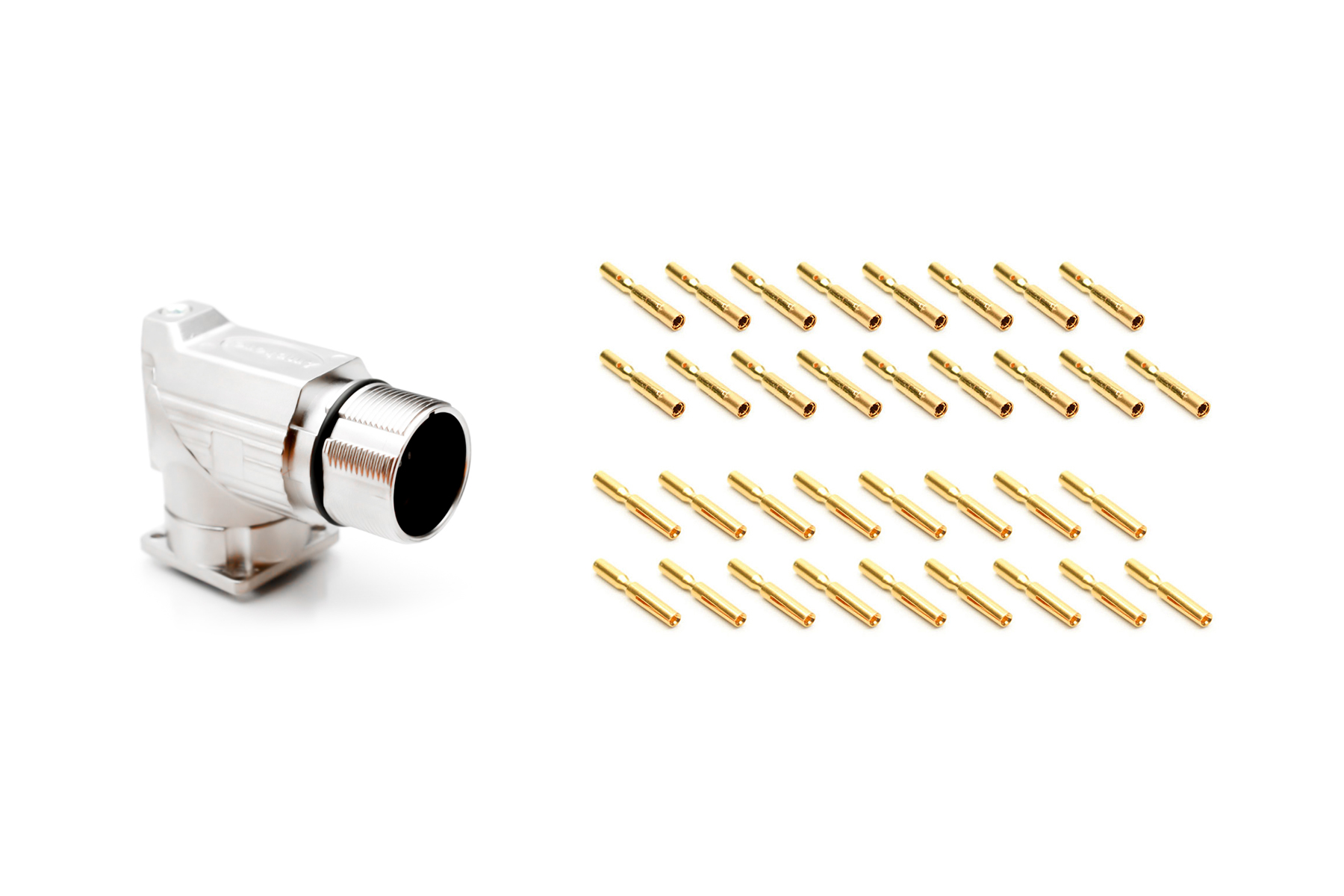

Introducing the M23 Elite Female 90° Rotatable Receptacle, boasting a robust construction with a zinc die-cast housing for durability in industrial settings. Featuring 17 gold-plated contacts for optimal conductivity, this connector ensures reliable performance in demanding environments. With a wide operating temperature range from -20°C to 130°C and an IP67 rating for dust and water resistance, it is suitable for outdoor and harsh conditions. The threaded mating type and Dupont Viton seal material provide secure connections, while the crimp termination method allows for easy installation. Nickel-plated with RoHS compliance, the M23-17 offers a current rating of 10A at 160V, making it ideal for power and signal transmission. With a mating cycle of 500 cycles and compatibility with wire sizes ranging from 28 to 18 AWG, this circular connector is a versatile solution for various applications.
