| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems MA7RAP1702-KIT |
| Gender: | Male |
| IP Rating: | IP67 |
| Wire Size: | 28 - 18 AWG |
| Shell Size: | M23 |
| Mating Type: | Threaded |
| Shell Finish: | Nickel Plated |
| Mating Cycles: | 500 cycle |
| Seal Material: | Dupont Viton |
| Current Rating: | 10 A |
| Voltage Rating: | 160 V |
| Contact Plating: | Gold |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 17 |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 130 °C |
| Minimum Operating Temperature: | -20 °C |
| Shell Size - Insert Arrangement: | M23-17 |
| Series: | M23 Elite |
| SKU: | AMEMA7RAP1702-KIT |
MA7RAP1702-KIT
Specifications
Detailed Description

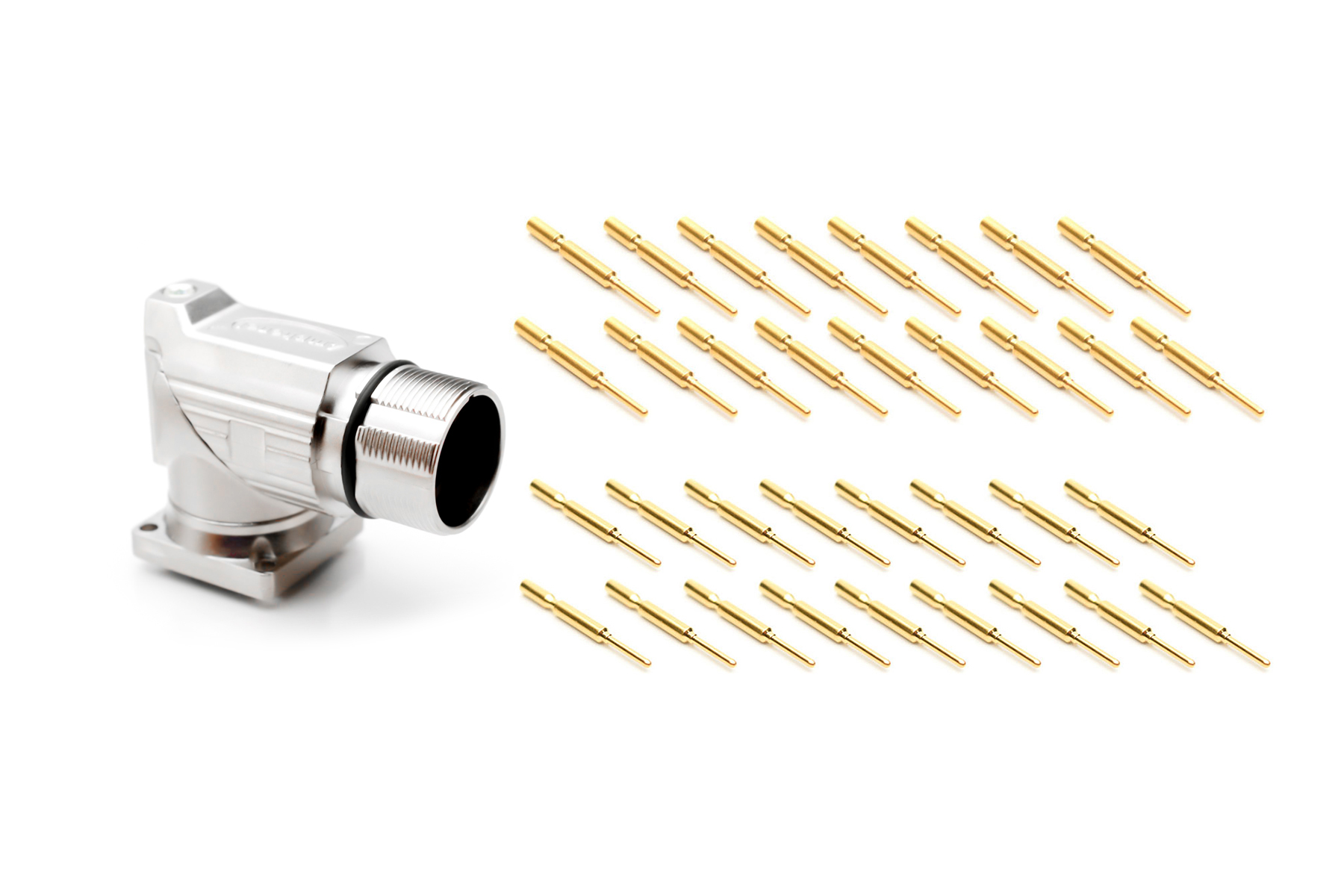

Introducing the MA7RAP1702-KIT, a cutting-edge M23 Elite series connector designed for high-performance industrial applications. This male connector features a durable zinc die-cast housing and gold-plated contacts, ensuring reliable conductivity in demanding environments. With 17 contacts and a crimp termination method, it offers secure and efficient connectivity. Operating smoothly in temperatures ranging from -20°C to 130°C, this connector is IP67 rated for excellent dust and water protection. Its threaded mating type and Dupont Viton seal make it ideal for rugged use. The M23-17 shell size insert arrangement accommodates 28-18 AWG wire sizes, while its nickel-plated finish enhances durability. Rated for 10A and 160V, this connector is suitable for a wide range of power and signal transmission tasks. Whether in machinery, automation, or other industrial settings, the MA7RAP1702-KIT delivers uncompromising performance and longevity.
