| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems MA7RAP1702S-KIT |
| Gender: | Female |
| IP Rating: | IP67 |
| Wire Size: | 28 - 18 AWG |
| Shell Size: | M23 |
| Mating Type: | Threaded |
| Shell Finish: | Nickel Plated |
| Mating Cycles: | 500 cycle |
| Seal Material: | Dupont Viton |
| Current Rating: | 10 A |
| Voltage Rating: | 160 V |
| Contact Plating: | Gold |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 17 |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 130 °C |
| Minimum Operating Temperature: | -20 °C |
| Shell Size - Insert Arrangement: | M23-17 |
| Series: | M23 Elite |
| SKU: | AMEMA7RAP1702S-KIT |
MA7RAP1702S-KIT
Specifications
Detailed Description

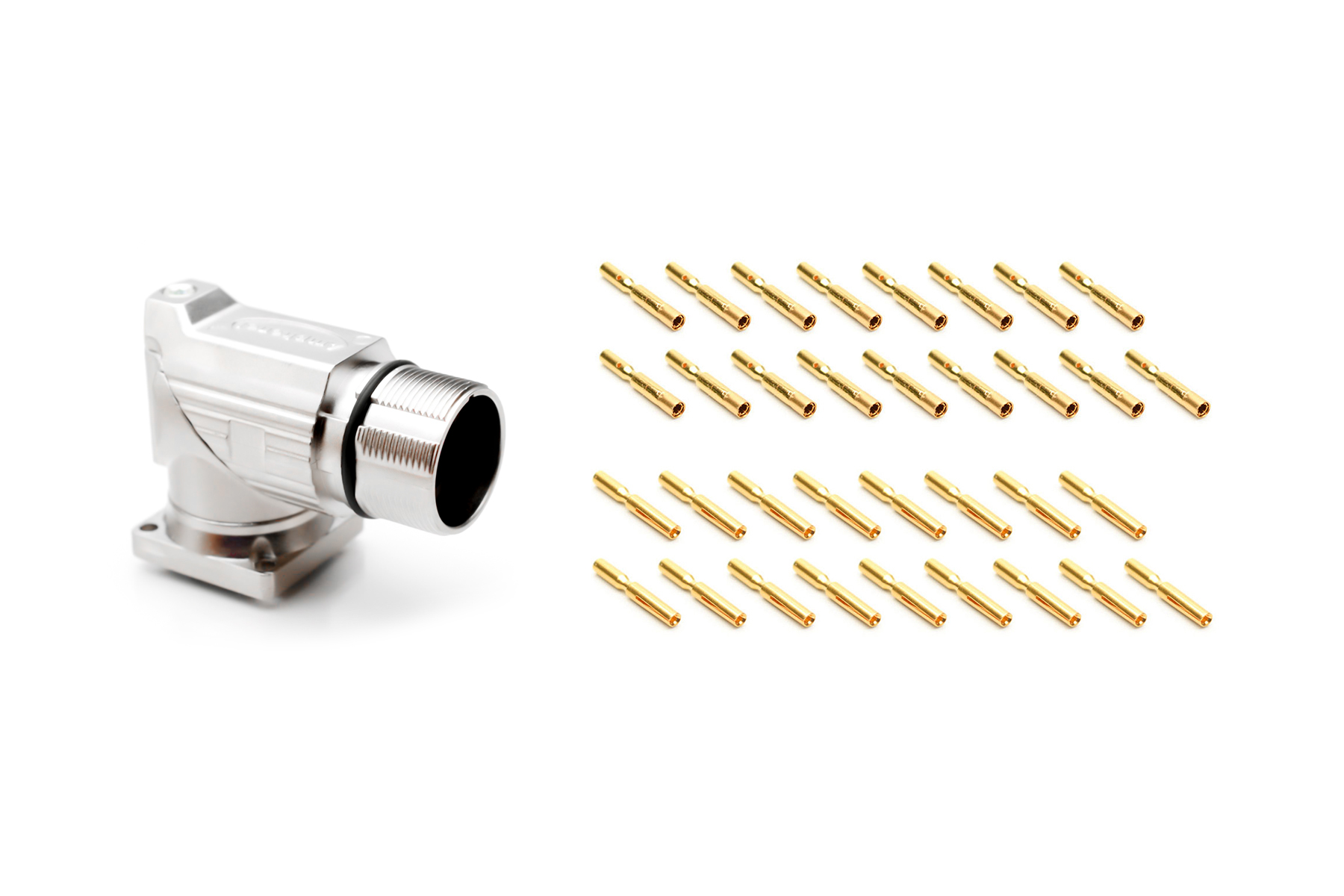

Introducing the M23 Elite series Rotatable Receptacle, SKU MA7RAP1702S-KIT, designed for reliable connectivity in demanding environments. Featuring a female gender and constructed with robust Zinc Die Cast housing, this connector ensures durability. With 17 gold-plated contacts, it guarantees optimal conductivity. The crimp termination method offers easy installation for 28-18 AWG wires. Operating efficiently in temperatures ranging from -20°C to 130°C, and with an IP67 rating for dust and water resistance, it is suitable for a wide range of applications. The M23-17 shell size insert arrangement, along with threaded mating type, provides secure connections. With a mating cycle of 500 cycles, this connector offers longevity. Nickel plated for corrosion resistance, it has a current rating of 10A and voltage rating of 160V, making it ideal for various industrial settings. Trust the MA7RAP1702SKIT for high-performance circular connectivity needs.
