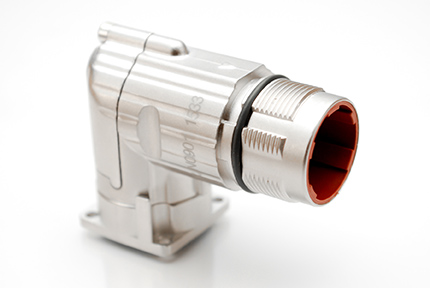

MS3450KT22-20P

AMEMB1RJNNG36
Heilind Number:AMEMB1RJNNG36
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Number:MS3450KT22-20P
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

AMEMB1RJNNG36

More >>

Specifications

AttributeValue
Product Category:
Circular Connectors & Accessories Circular Connectors
Manufacturer:Aero-Electric Connector | Conesys
Manufacturer Part Number:Aero-Electric Connector | Conesys MS3450KT22-20P
Series:M23
Housing Material:Zinc Die Cast
Number of Contacts:9
Mount Type:Panel Mount
Contact Plating:Gold
Maximum Operating Temperature:130 °C
Minimum Operating Temperature:-20 °C
IP Rating:IP67
Shell Size:M23
Mating Type:Threaded
Seal Material:Dupont Viton
Shell Size - Insert Arrangement:M23-9
Mating Cycles:50 cycle
Wire Size:12 AWG, 16 - 14 AWG, 22 - 18 AWG, 28 - 24 AWG
Shell Finish:Nickel Plated
Current Rating:10 A, 30 A
Voltage Rating:250 V, 630 V
SKU:AMEMB1RJNNG36

Detailed Description

Introducing the MS3450KT22-20P M23 Circular Connector, a durable and high-performance solution for your connectivity needs. Crafted with a Zinc Die Cast housing, this connector is built to withstand harsh environments with an IP67 rating, ensuring reliable operation even in challenging conditions. With gold contact plating, it guarantees excellent signal transmission. The shell size M23, threaded mating type, and Dupont Viton seal material offer secure and watertight connections. Supporting 9 contacts, including wire sizes ranging from 12 AWG to 28-24 AWG, and a current rating of 10A to 30A, it accommodates a wide range of applications. Nickel plated shell finish adds to its longevity. RoHS compliant and with voltage ratings of 250V to 630V, this connector meets high safety and quality standards. The MS3450KT22-20P is perfect for industrial, military, and aerospace applications where reliability is paramount.
