| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems MB5RJN0601-KIT |
| Series: | M23 Elite Checkmate™ |
| Gender: | Male |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 6 |
| Mount Type: | Panel Mount |
| Termination Method: | Crimp |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 130 °C |
| Minimum Operating Temperature: | -20 °C |
| IP Rating: | IP67 |
| Shell Size: | M23 |
| Seal Material: | Dupont Viton |
| Shell Size - Insert Arrangement: | M23-6 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 18 - 14 AWG |
| Shell Finish: | Nickel Plated |
| Current Rating: | 28 A |
| Voltage Rating: | 630 V |
| SKU: | AMEMB5RJN0601-KIT |
MB5RJN0601-KIT
Specifications
Detailed Description

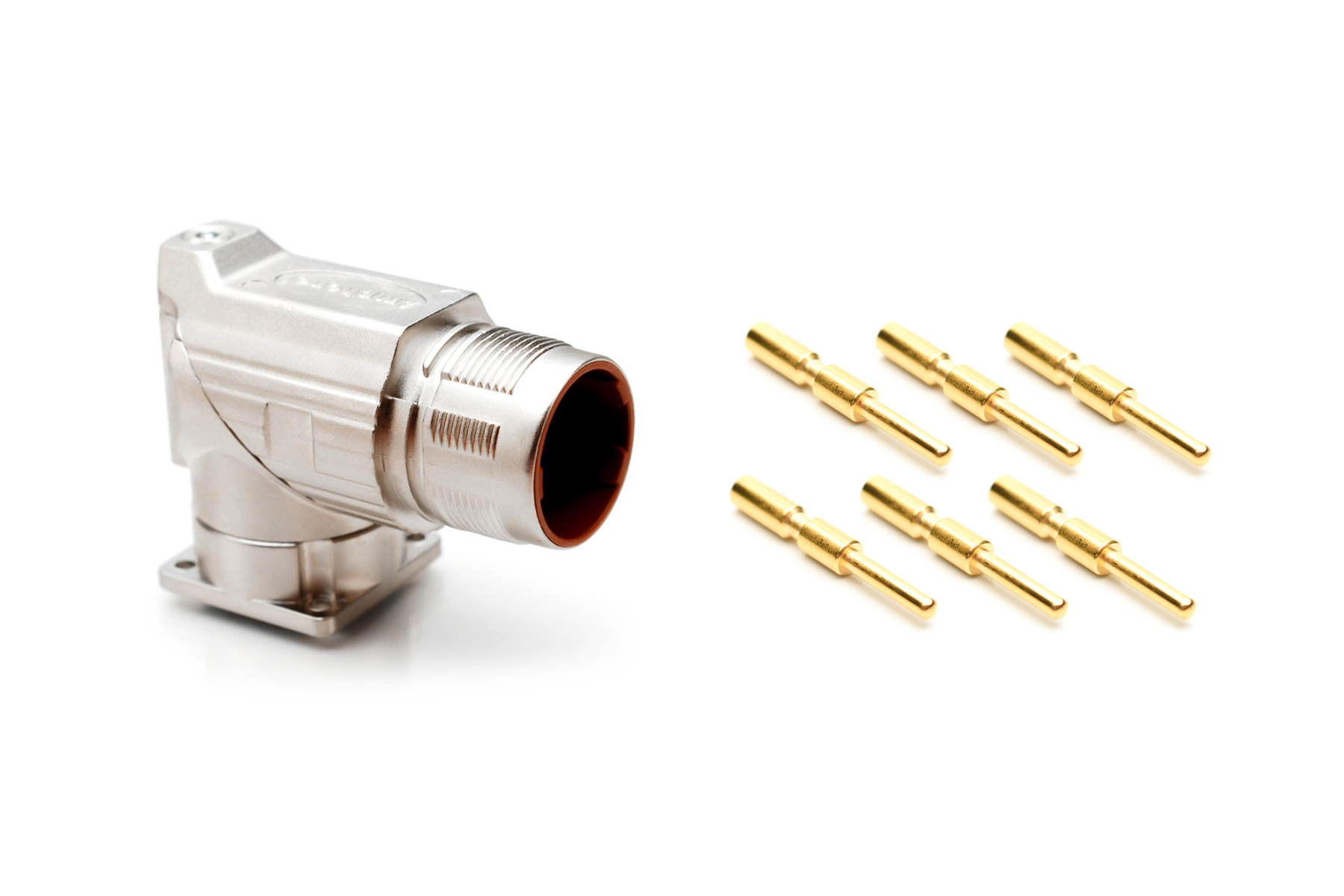

Introducing the M23 Elite Checkmate™ Rotatable Receptacle, a high-performance connector designed for demanding industrial applications. Featuring a durable Zinc Die Cast housing and gold-plated contacts, this male connector ensures reliable conductivity in any environment. With a panel mount design and crimp termination method, installation is quick and easy. Its IP67 rating guarantees protection against dust and water ingress, while the Dupont Viton seal material provides added durability. Operating smoothly in temperatures ranging from -20 °C to 130 °C, this connector is suitable for a wide range of operating conditions. Boasting a current rating of 28 A and a voltage rating of 630 V, it delivers robust performance. Perfect for circular connector applications, the M23 Elite Checkmate™ is a dependable solution for your connectivity needs.
