| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems MB5RJN0801-KIT |
| Series: | M23 Elite Checkmate™ |
| Gender: | Male |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 8 |
| Mount Type: | Panel Mount |
| Termination Method: | Crimp |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 130 °C |
| Minimum Operating Temperature: | -20 °C |
| IP Rating: | IP67 |
| Shell Size: | M23 |
| Seal Material: | Dupont Viton |
| Shell Size - Insert Arrangement: | M23-8 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 18 - 14 AWG |
| Shell Finish: | Nickel Plated |
| Current Rating: | 10 A, 30 A |
| Voltage Rating: | 250 V, 630 V |
| SKU: | AMEMB5RJN0801-KIT |
MB5RJN0801-KIT
Specifications
Detailed Description

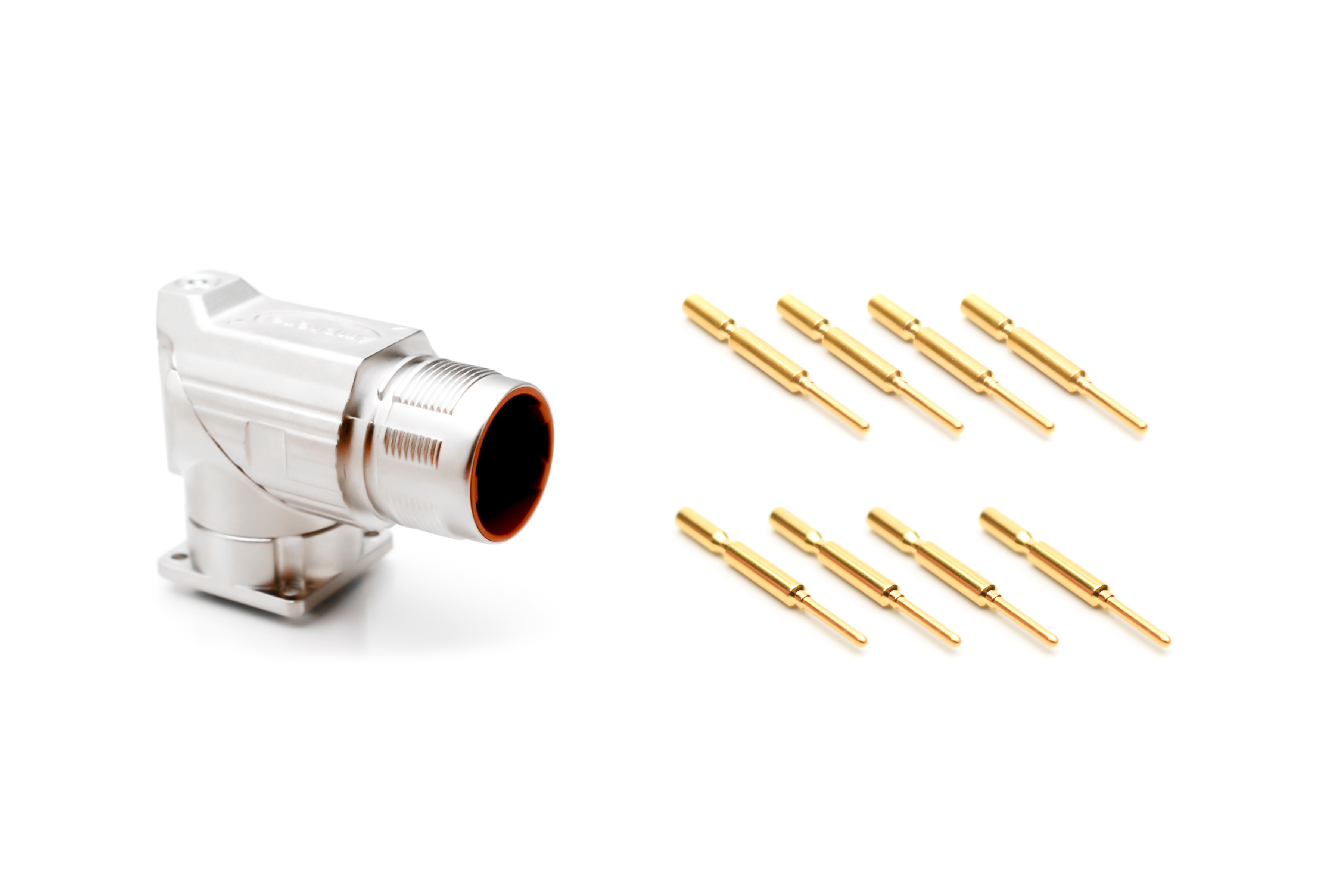

Introducing the M23 Elite Checkmate™ Series, our MB5RJN0801-KIT offers unparalleled connectivity with its 90° Rotatable Receptacle design. Crafted from durable Zinc Die Cast housing material, this Male connector features 8 gold-plated contacts for optimal signal transmission. Suitable for panel mount installation using a crimp termination method, it ensures secure and reliable connectivity in industrial environments. With an IP67 rating, it provides protection against dust and water ingress. Operating efficiently in temperatures ranging from -20°C to 130°C, it is perfect for use in diverse applications. The Dupont Viton seal material and Nickel Plated shell finish guarantee long-lasting performance even in harsh conditions. Rated for 10A/250V and 30A/630V, this connector is ideal for high-power applications. Its M23 shell size and #18-14 AWG wire size compatibility make it versatile for various setups. With a mating cycle of 500, it offers durability and longevity. In compliance with Circular Connectors & Accessories standards, this kit is a reliable solution for your connectivity needs.
