| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems MB5RJN0902-KIT |
| Gender: | Male |
| IP Rating: | IP67 |
| Wire Size: | 18 - 14 AWG |
| Mount Type: | Panel Mount |
| Shell Size: | M23 |
| Shell Finish: | Nickel Plated |
| Mating Cycles: | 500 cycle |
| Seal Material: | Dupont Viton |
| Current Rating: | 10 A, 30 A |
| Voltage Rating: | 250 V, 630 V |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 9 |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 130 °C |
| Minimum Operating Temperature: | -20 °C |
| Shell Size - Insert Arrangement: | M23-9 |
| Series: | M23 Elite Checkmate™ |
| SKU: | AMEMB5RJN0902-KIT |
MB5RJN0902-KIT
Specifications
Detailed Description

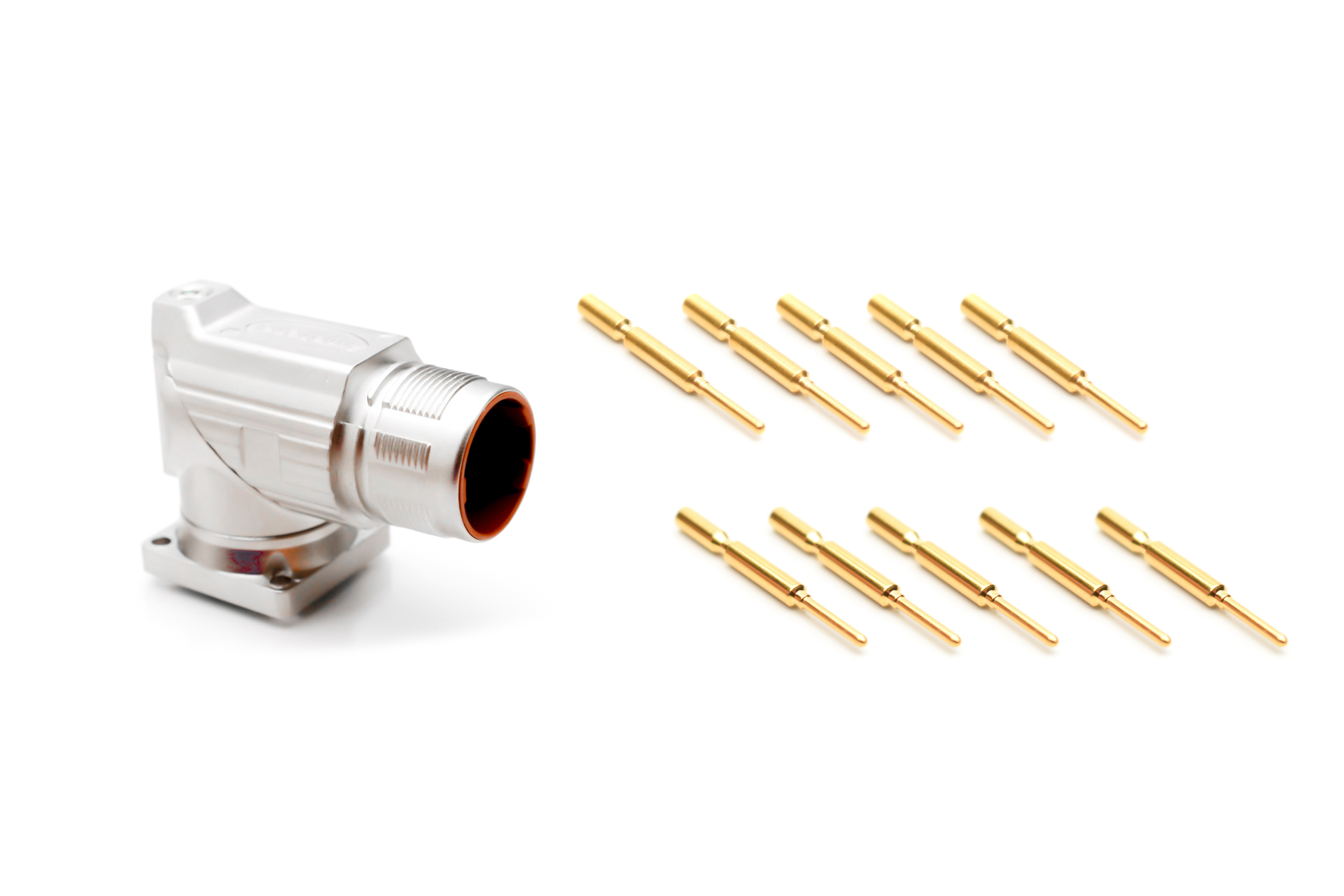

Introducing the M23 Elite Checkmate™ Male 90° Rotatable Receptacle, MB5RJN0902-KIT. This high-performance connector features a durable Zinc Die Cast housing, making it ideal for industrial applications. With 9 gold-plated contacts, it ensures reliable signal transmission. The panel mount design and crimp termination method guarantee easy installation. Operating in temperatures ranging from -20°C to 130°C, with an IP67 rating for dust and water resistance, this connector is built to withstand harsh environments. The Dupont Viton seal material provides added protection. With a shell size of M23 and a nickel-plated finish, it offers both durability and conductivity. Rated for 10A at 250V and 30A at 630V, it meets high-power requirements. The M23-9 shell size insert arrangement allows for efficient mating. With a lifespan of 500 cycles, it ensures long-term performance. Suitable for 18-14 AWG wire sizes, this connector is a reliable solution for demanding connectivity needs in the industrial sector.
