| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems MB7RJN0802-KIT |
| Series: | M23 Elite |
| Gender: | Male |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 8 |
| Termination Method: | Crimp |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 130 °C |
| Minimum Operating Temperature: | -20 °C |
| IP Rating: | IP67 |
| Shell Size: | M23 |
| Mating Type: | Threaded |
| Seal Material: | Dupont Viton |
| Shell Size - Insert Arrangement: | M23-8 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 18 - 14 AWG |
| Shell Finish: | Nickel Plated |
| Current Rating: | 10 A, 30 A |
| Voltage Rating: | 250 V, 630 V |
| SKU: | AMEMB7RJN0802-KIT |
MB7RJN0802-KIT
Specifications
Detailed Description

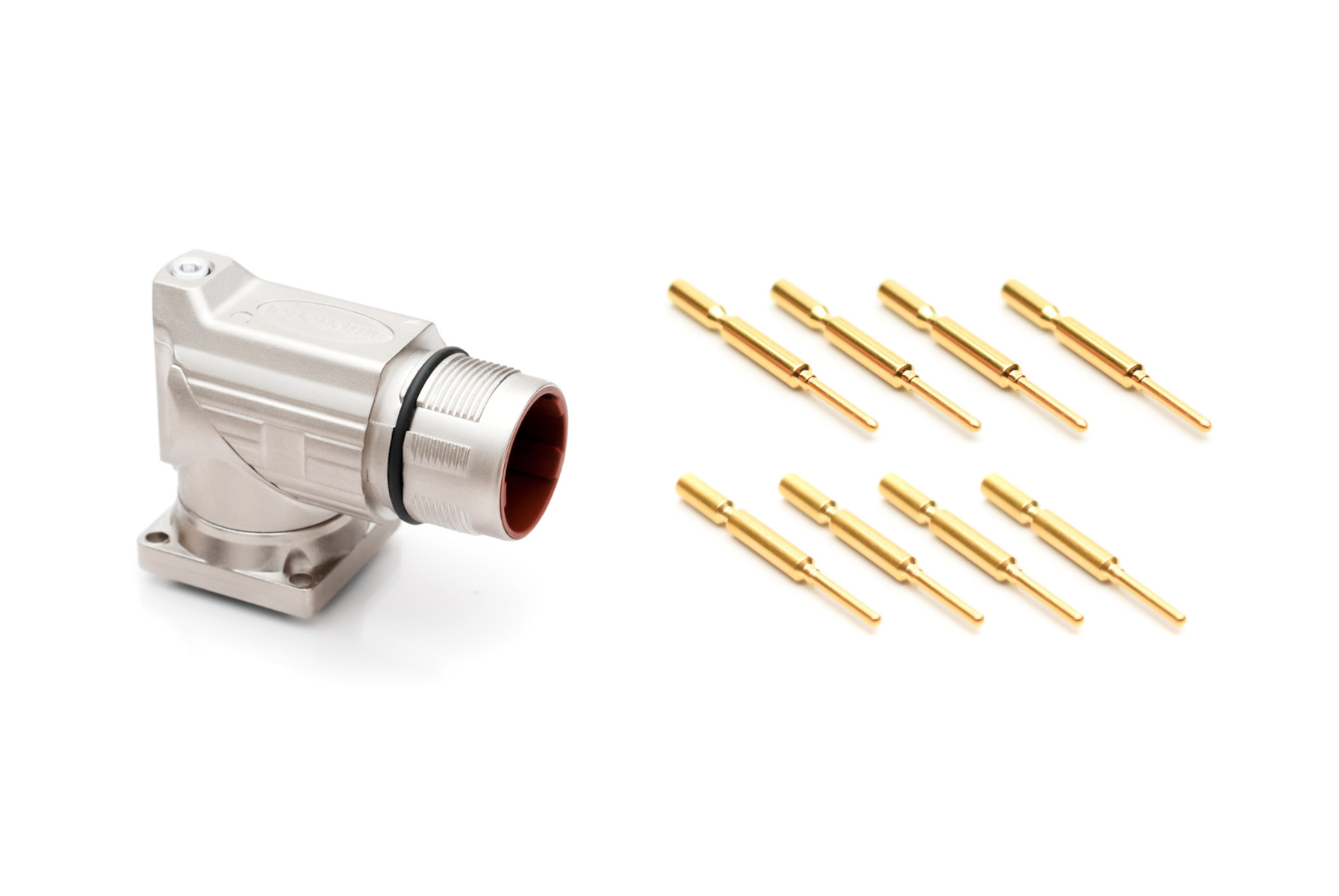

Introducing the M23 Elite Series 90° Rotatable Receptacle, SKU MB7RJN0802-KIT. This male connector features a robust zinc die-cast housing and gold-plated contacts, ensuring reliable performance in industrial environments. With 8 contacts and a crimp termination method, it offers secure and efficient connectivity for 18-14 AWG wires. Operating effortlessly in temperatures ranging from -20°C to 130°C, and boasting an IP67 rating, it guarantees durability and protection against harsh conditions. The Dupont Viton seal material and nickel-plated shell finish further enhance its resilience. With a current rating of 10A/30A and voltage rating of 250V/630V, this connector is suitable for a wide range of applications in the hi-rel sector. Count on the M23 Elite for dependable and high-performance circular connectivity.
