| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems MB7RJN0901-KIT |
| Gender: | Male |
| IP Rating: | IP67 |
| Wire Size: | 18 - 14 AWG |
| Shell Size: | M23 |
| Mating Type: | Threaded |
| Shell Finish: | Nickel Plated |
| Mating Cycles: | 500 cycle |
| Seal Material: | Dupont Viton |
| Current Rating: | 10 A, 30 A |
| Voltage Rating: | 250 V, 630 V |
| Contact Plating: | Gold |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 9 |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 130 °C |
| Minimum Operating Temperature: | -20 °C |
| Shell Size - Insert Arrangement: | M23-9 |
| Series: | M23 Elite |
| SKU: | AMEMB7RJN0901-KIT |
MB7RJN0901-KIT
Specifications
Detailed Description

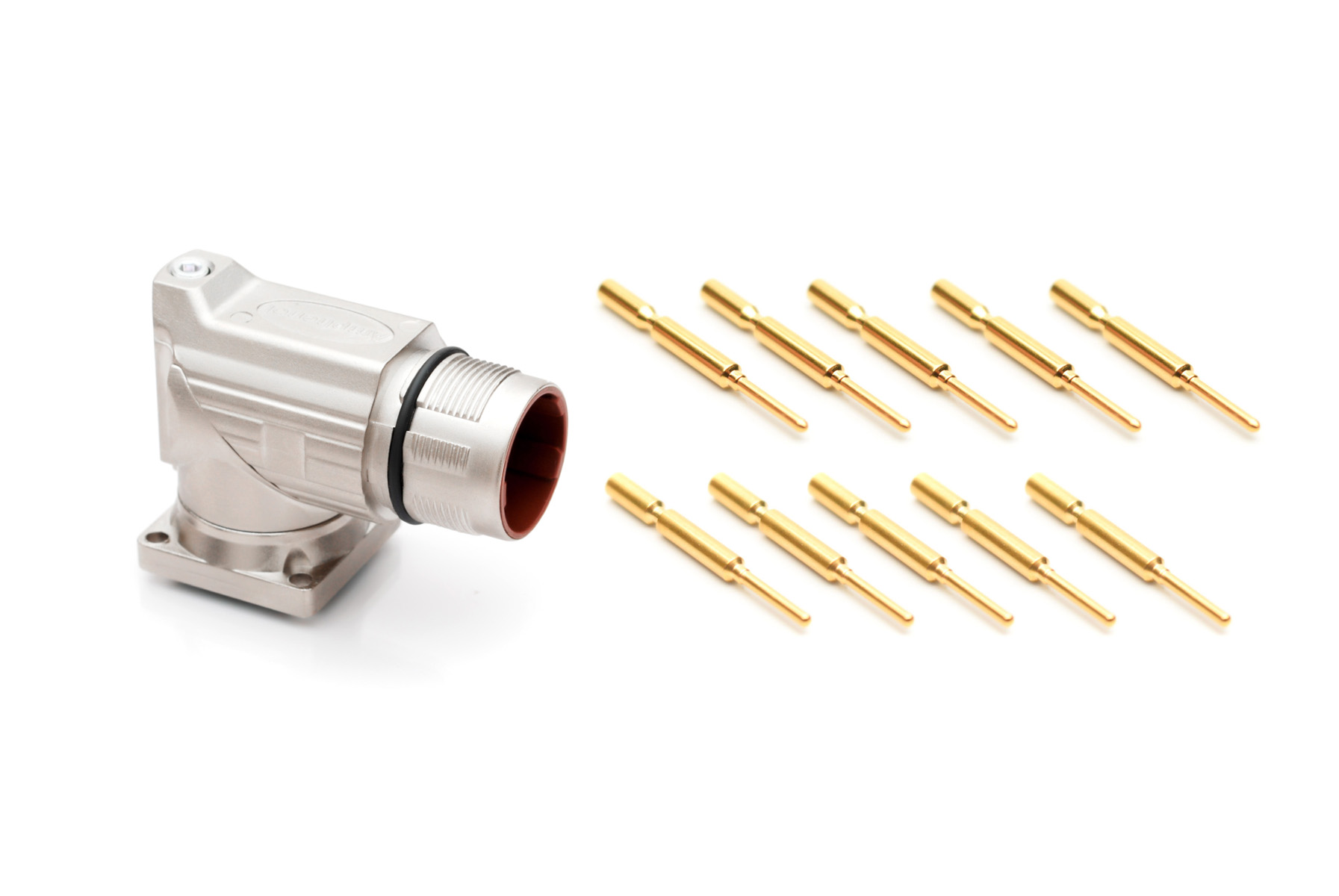

Introducing the M23 Elite Series Rotatable Receptacle, SKU MB7RJN0901-KIT. This male connector features a durable zinc die-cast housing and gold-plated contacts, ensuring reliable performance in industrial environments. With 9 contacts, it offers ample connectivity for various applications. The crimp termination method makes installation quick and easy, while the IP67 rating guarantees protection against dust and water ingress. Operating temperature ranges from -20°C to 130°C, making it suitable for use in extreme conditions. The threaded mating type ensures a secure connection, while the Dupont Viton seal provides additional protection. Designed for longevity, it boasts a mating cycle of 500 cycles. Suitable for wire sizes 18-14 AWG, it can handle current ratings of 10A and 30A, with voltage ratings of 250V and 630V. Nickel-plated shell finish adds to its durability. Ideal for use in aerospace, defense, and industrial applications, this connector, part of our Circular Connectors & Accessories range, is a dependable solution for your connectivity needs.
