| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems RT00124PNH03 |
| Military Specification: | MIL-DTL-26482 |
| Series: | ecomate® RM Series |
| Gender: | Male |
| Housing Material: | Zinc Alloy |
| Number of Contacts: | 4 |
| Mount Type: | Panel Mount |
| Termination Method: | Crimp |
| Contact Material: | Copper Alloy |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP67 |
| Shell Size: | 12 |
| Contact Type: | Pin |
| Mating Type: | Bayonet |
| Seal Material: | Silicone Rubber |
| Shell Size - Insert Arrangement: | 12-4 |
| Shell Material: | Zinc Alloy |
| Mating Cycles: | 500 cycle |
| Wire Size: | 26 to 14 AWG |
| Shell Type: | Square Flange Receptacle |
| Shell Finish: | Nickel |
| Current Rating: | 13 A |
| Voltage Rating: | 500 V |
| Insert Arrangement: | 12-4 |
| Locking Mechanism: | Bayonet |
| SKU: | AMERT00124PNH03 |

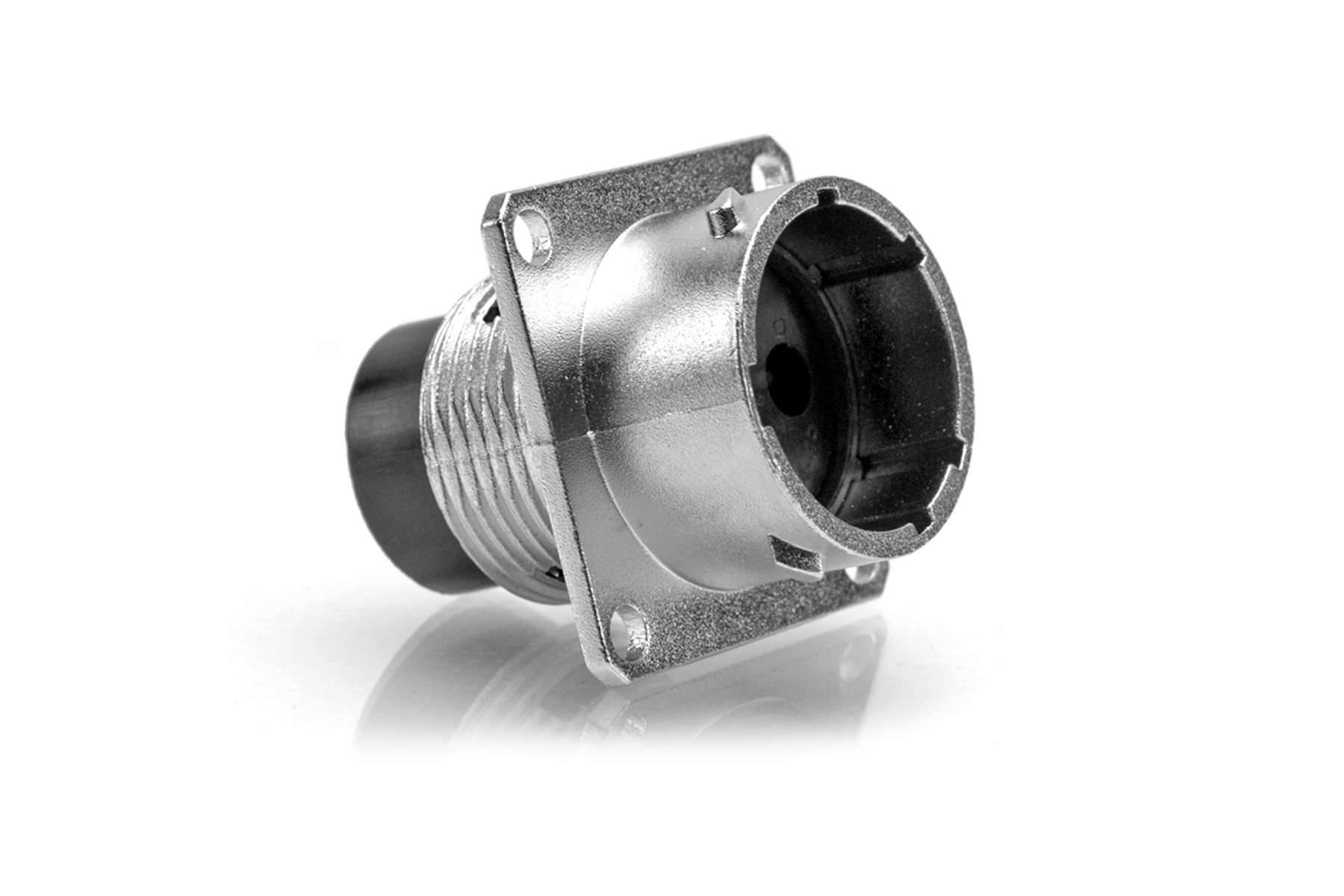

RT00124PNH03
Specifications
Detailed Description
Introducing the ecomate® RM Circular Connector, a rugged and reliable solution designed to meet MIL-DTL-26482 military specifications. With a durable Zinc Alloy housing and IP67 rating, this connector ensures secure panel mounting in even the harshest environments. Featuring 4 gold-plated contacts for optimal conductivity, it guarantees high-performance crimp termination. Operating seamlessly from -40°C to 125°C, it is suitable for a wide range of applications. The bayonet mating type and silicone rubber seals provide quick and watertight connections, while the nickel-plated shell finish offers corrosion resistance. With a current rating of 13A and voltage rating of 500V, it is perfect for demanding tasks. RoHS compliant and meticulously tested for 500 mating cycles, this connector guarantees longevity and performance. Upgrade to the ecomate® RM for unparalleled quality in circular connectivity.
