| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems RT00128PKNH03 |
| Series: | ecomate® RSSM Series |
| Gender: | Male |
| IP Rating: | IP69K |
| Wire Size: | 26 to 14 AWG |
| Mount Type: | Panel Mount |
| Shell Size: | 12 |
| Shell Finish: | Nickel |
| Mating Cycles: | 500 cycle |
| Seal Material: | Silicone Rubber |
| Current Rating: | 13 A |
| Voltage Rating: | 500 V |
| Housing Material: | Zinc Alloy |
| Number of Contacts: | 8 |
| Military Specification: | MIL-DTL-26482 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| Shell Size - Insert Arrangement: | 12-8 |
| Shell Type: | Square Flange Receptacle |
| Contact Type: | Pin |
| Shell Material: | Zinc Alloy |
| Contact Material: | Copper Alloy |
| Locking Mechanism: | Bayonet |
| Insert Arrangement: | 12-8 |
| SKU: | AMERT00128PKNH03 |
RT00128PKNH03
| Heilind Number: | AMERT00128PKNH03 |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Number: | RT00128PKNH03 |
| ECAD Model: | |
Specifications
Detailed Description

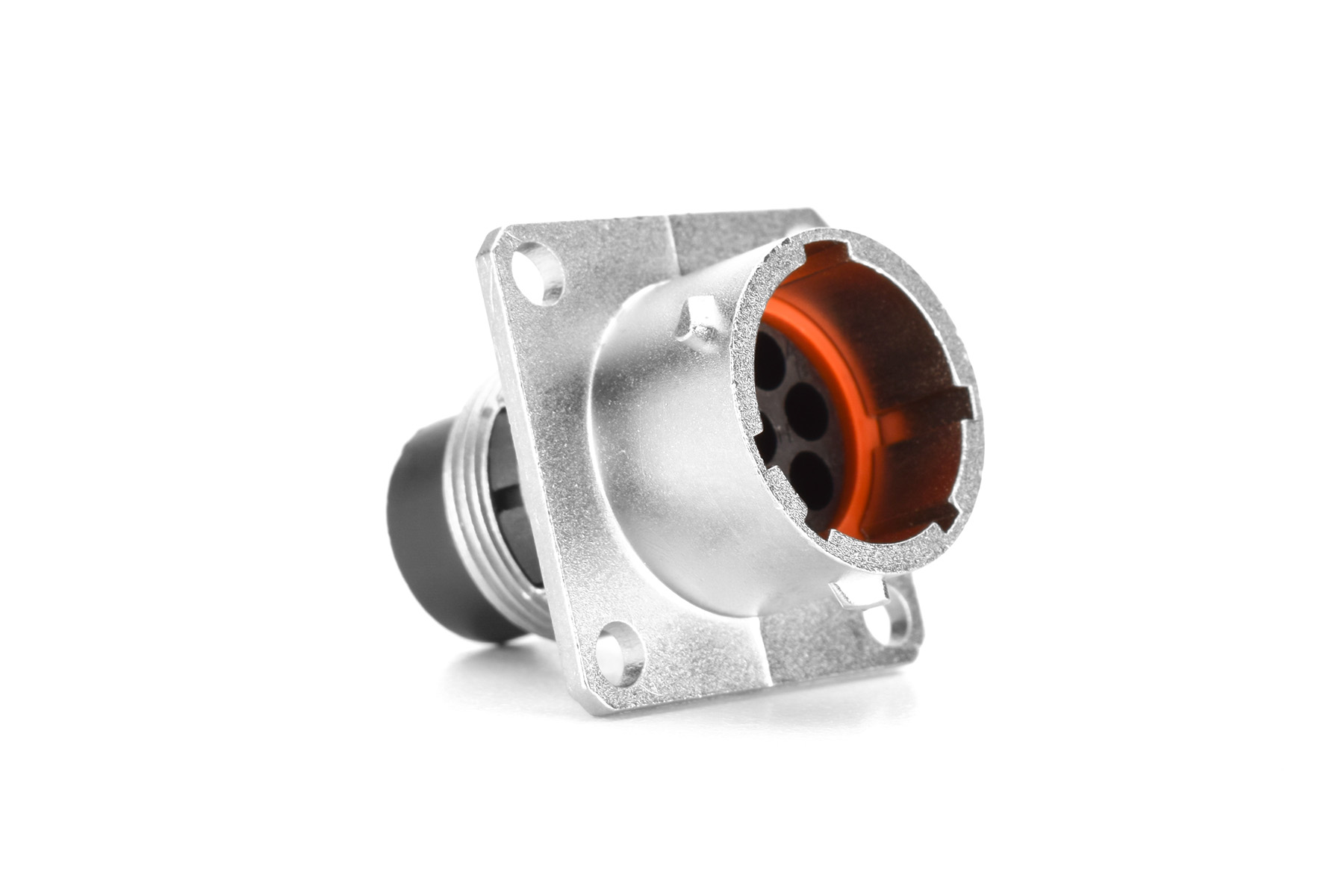

Introducing the RT00128PKNH03, a rugged and reliable circular connector designed to meet MIL-DTL-26482 military specifications. Part of the ecomate® RSSM series, this male connector features a durable zinc alloy housing with a nickel-plated finish, making it ideal for harsh environments. With 8 contacts and a panel mount design, it ensures secure and stable connections. Operating flawlessly in temperatures ranging from -40 °C to 125 °C, and boasting an IP69K rating for dust and water resistance, this connector is suitable for a wide range of applications. Its silicone rubber seals and 500 mating cycles guarantee long-lasting performance. Accommodating wire sizes from 26 to 14 AWG, it offers a current rating of 13 A and a voltage rating of 500 V. Perfect for high-reliability applications, the RT00128PKNH03 is a dependable solution for your connectivity needs.
