| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems RT06122PNHEC03 |
| Series: | ecomate® RM Series |
| Gender: | Male |
| IP Rating: | IP67 |
| Wire Size: | 14 to 12 AWG, 28 to 20 AWG |
| Shell Size: | 12 |
| Mating Type: | Bayonet |
| Shell Finish: | Nickel |
| Mating Cycles: | 500 cycle |
| Seal Material: | Silicone Rubber |
| Current Rating: | 23 A, 5 A, 7.5 A |
| Voltage Rating: | 500 V |
| Housing Material: | Zinc Alloy |
| Number of Contacts: | 4 |
| Termination Method: | Crimp |
| Military Specification: | MIL-DTL-26482 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| Shell Size - Insert Arrangement: | 12-4 |
| Shell Type: | Plug |
| Contact Type: | Pin |
| Shell Material: | Zinc Alloy |
| Contact Material: | Copper Alloy |
| Locking Mechanism: | Bayonet |
| Insert Arrangement: | 12-4 |
| SKU: | AMERT06122PNHEC03 |
RT06122PNHEC03
| Heilind Number: | AMERT06122PNHEC03 |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Number: | RT06122PNHEC03 |
| Datasheet: | Datasheet |
| ECAD Model: | |
Specifications
Detailed Description

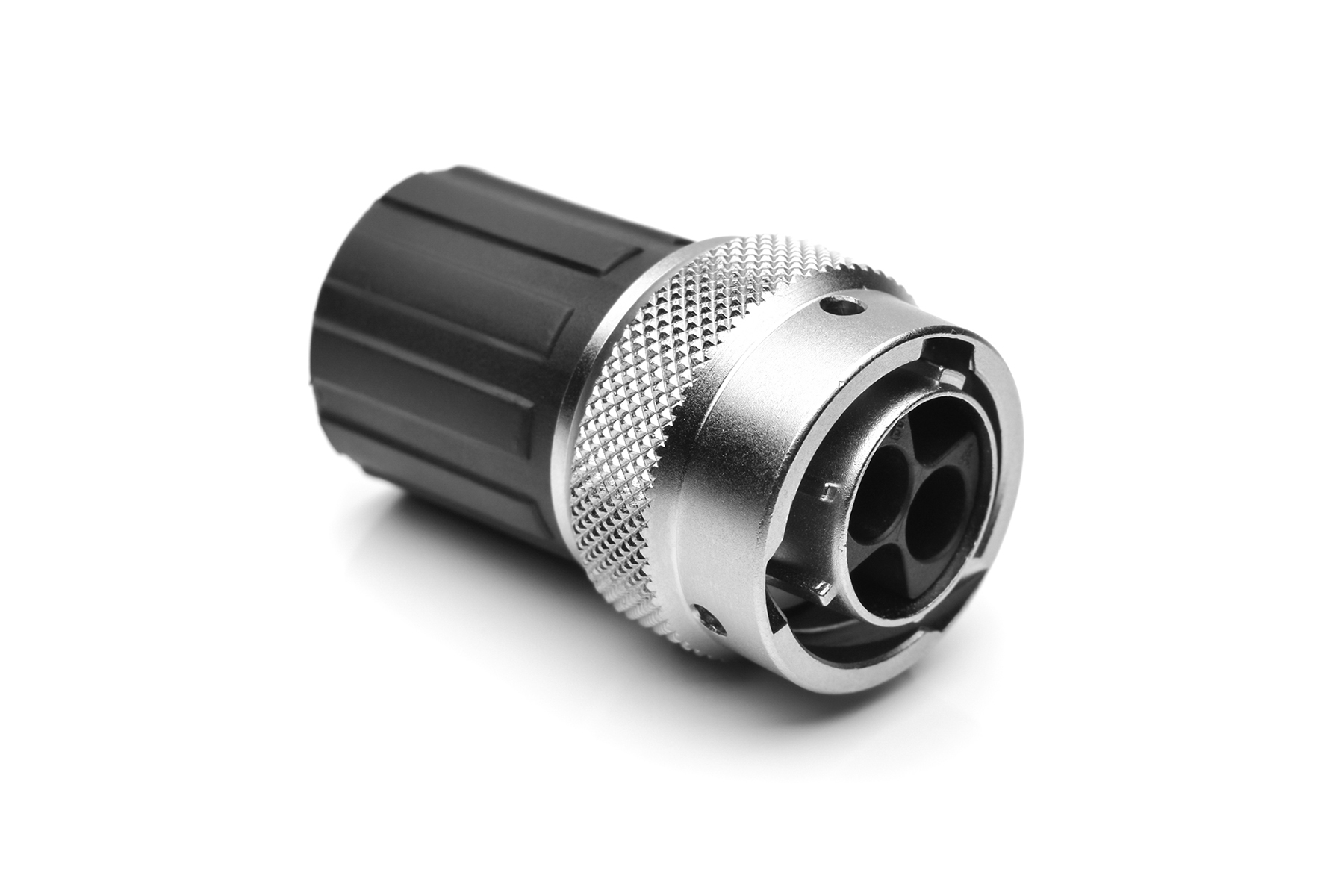

The RT06122PNHEC03 is a rugged circular connector designed to meet MIL-DTL-26482 military specifications. Part of the ecomate® RM series, this male connector features a durable zinc alloy housing, making it suitable for harsh environments. With four crimp contacts, it ensures secure and reliable connections. Operating smoothly in temperatures ranging from -40°C to 125°C, and boasting an IP67 rating for dust and water resistance, this connector is built to withstand demanding conditions. The bayonet mating type and silicone rubber seal provide added convenience and protection. Its nickel-plated shell finish not only enhances durability but also ensures efficient conductivity. Suitable for wire sizes ranging from 14-12 AWG to 28-20 AWG, and with current ratings of 5A, 7.5A, and 23A, this connector is versatile and reliable in various applications. Whether for military, industrial, or commercial use, the RT06122PNHEC03 offers high performance and durability you can trust.
