| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3260 004 |
| Gender: | Male |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 3 |
| Mount Type: | Cable Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 10 A |
| Voltage Rating: | 250 V, 300 V |
| SKU: | AMET 3260 004 |

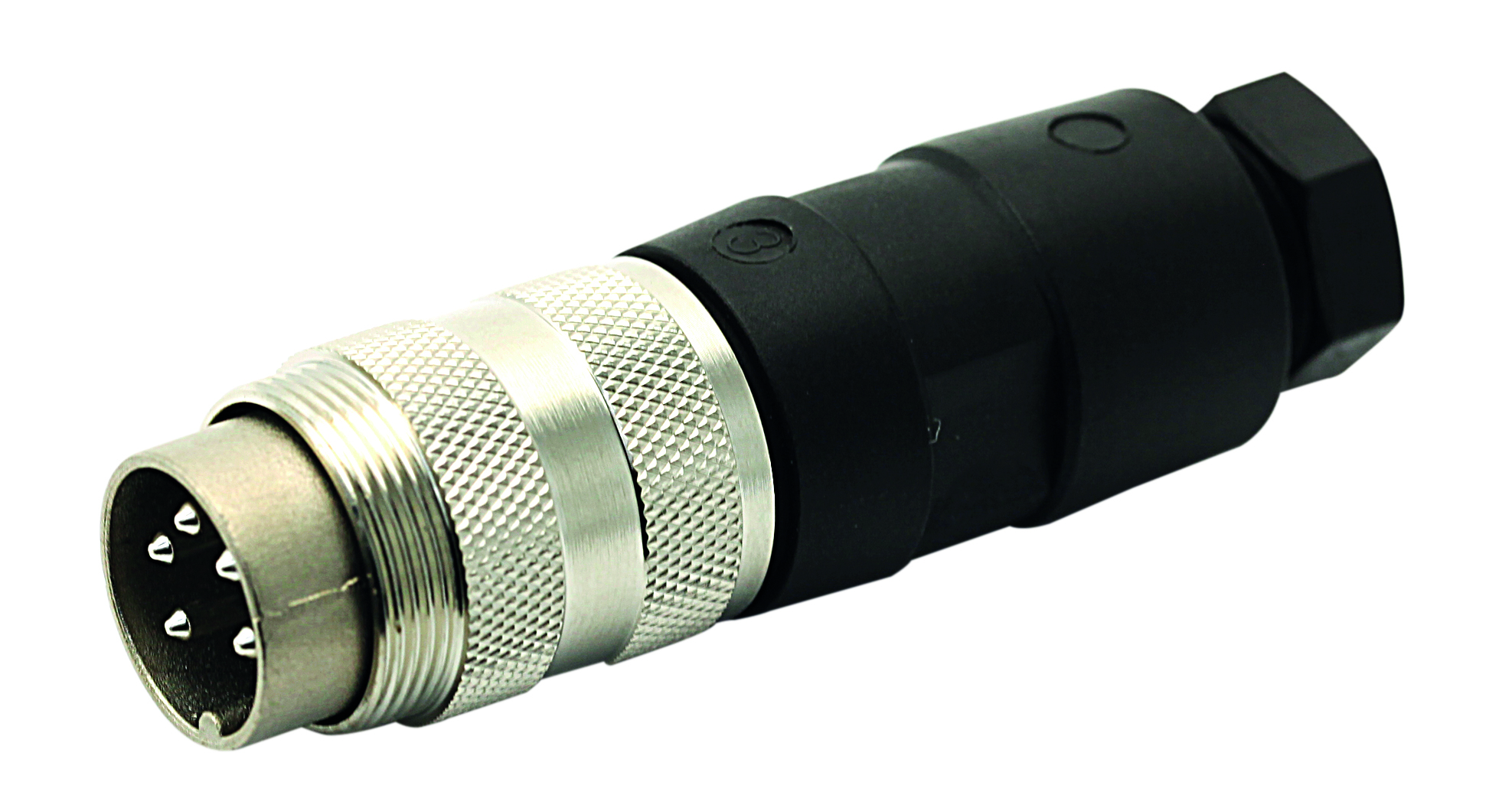

T 3260 004
Specifications
Detailed Description
Introducing the T 3260 004, a robust Male Cable Connector designed for seamless three-way connections. Constructed with high-quality Die Cast Zinc housing, this connector ensures durability in various applications. Featuring solder termination and silver contact plating, it guarantees reliable conductivity. With an IP40 rating, it offers protection against dust and water ingress. The M16 shell size, straight mount angle, and screw mating type make installation easy. Rated for 10A current and 250V/300V voltage, it meets stringent performance standards. RoHS compliant and suitable for 20 AWG wire size, this connector is ideal for Circular DIN applications. Upgrade your connectivity with the T 3260 004.
