| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3261 001 |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 3 |
| Mount Type: | Cable Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 10 A |
| Voltage Rating: | 250 V, 300 V |
| SKU: | AMET 3261 001 |
T 3261 001
Specifications
Detailed Description

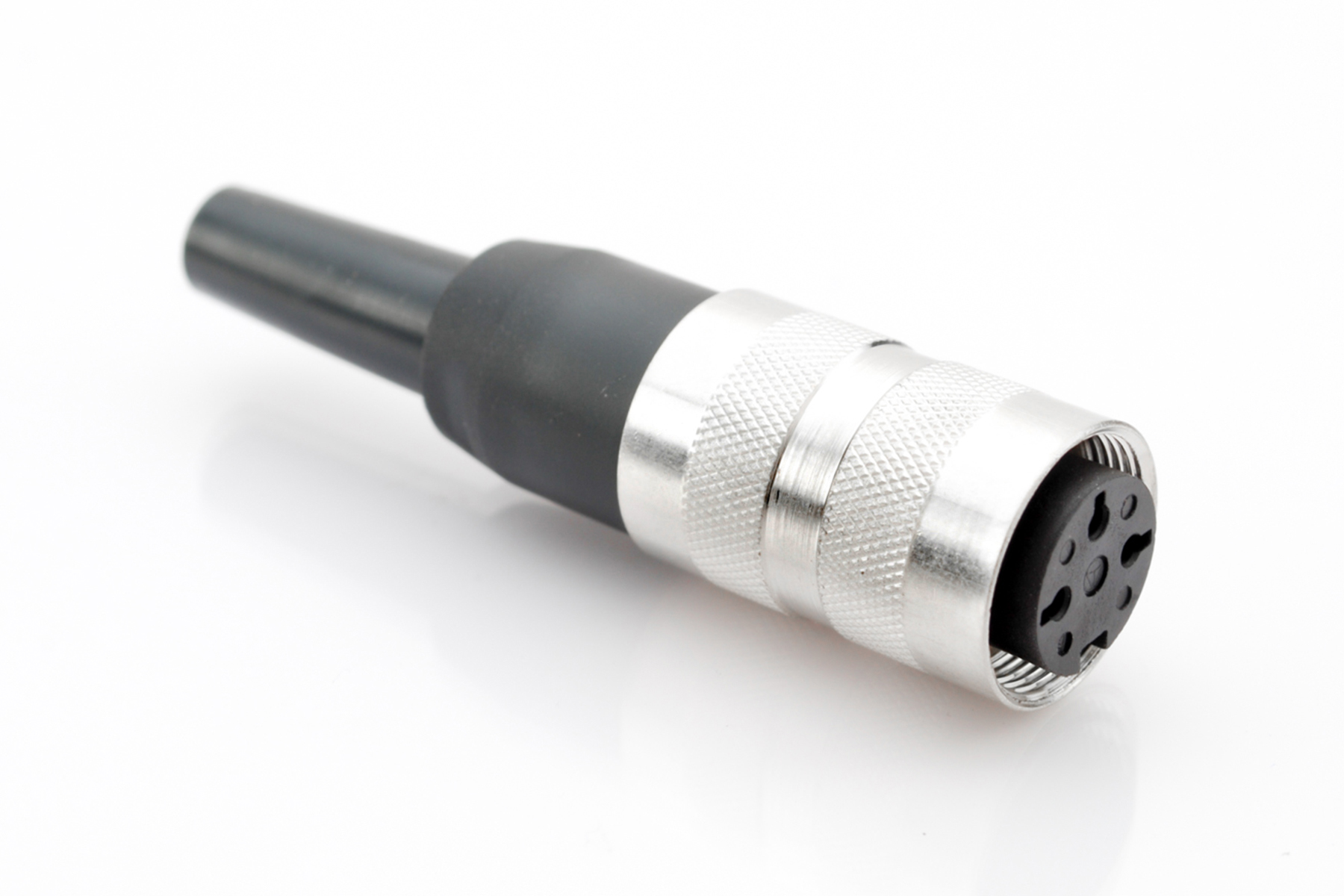

Introducing the FEMALE CABLE CONNECTOR 3W C091A, T 3261 001, a high-performance connectivity solution. Constructed with robust Die Cast Zinc housing, this connector ensures durability in various environments. Featuring 3 contacts for seamless signal transmission, it offers reliable connectivity. The Cable Mount design with Solder termination method facilitates easy installation. Silver contact plating enhances conductivity, while the IP40 rating guarantees protection against dust. With a wide operating temperature range from -40°C to 100°C, it is suitable for diverse applications. The M16 shell size, Screw mating type, and Straight mount angle provide versatility. Shielded for interference-free operation, it accommodates 20 AWG wire size and offers a current rating of 10A. RoHS compliant and with a voltage rating of 250V/300V, this connector is not only efficient but also environmentally friendly. Trusted for its quality and performance, the FEMALE CABLE CONNECTOR 3W C091A is a crucial component in the Circular DIN Connectors category.
