| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3261 013 |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 3 |
| Mount Type: | Cable Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 10 A |
| Voltage Rating: | 250 V, 300 V |
| SKU: | AMET 3261 013 |

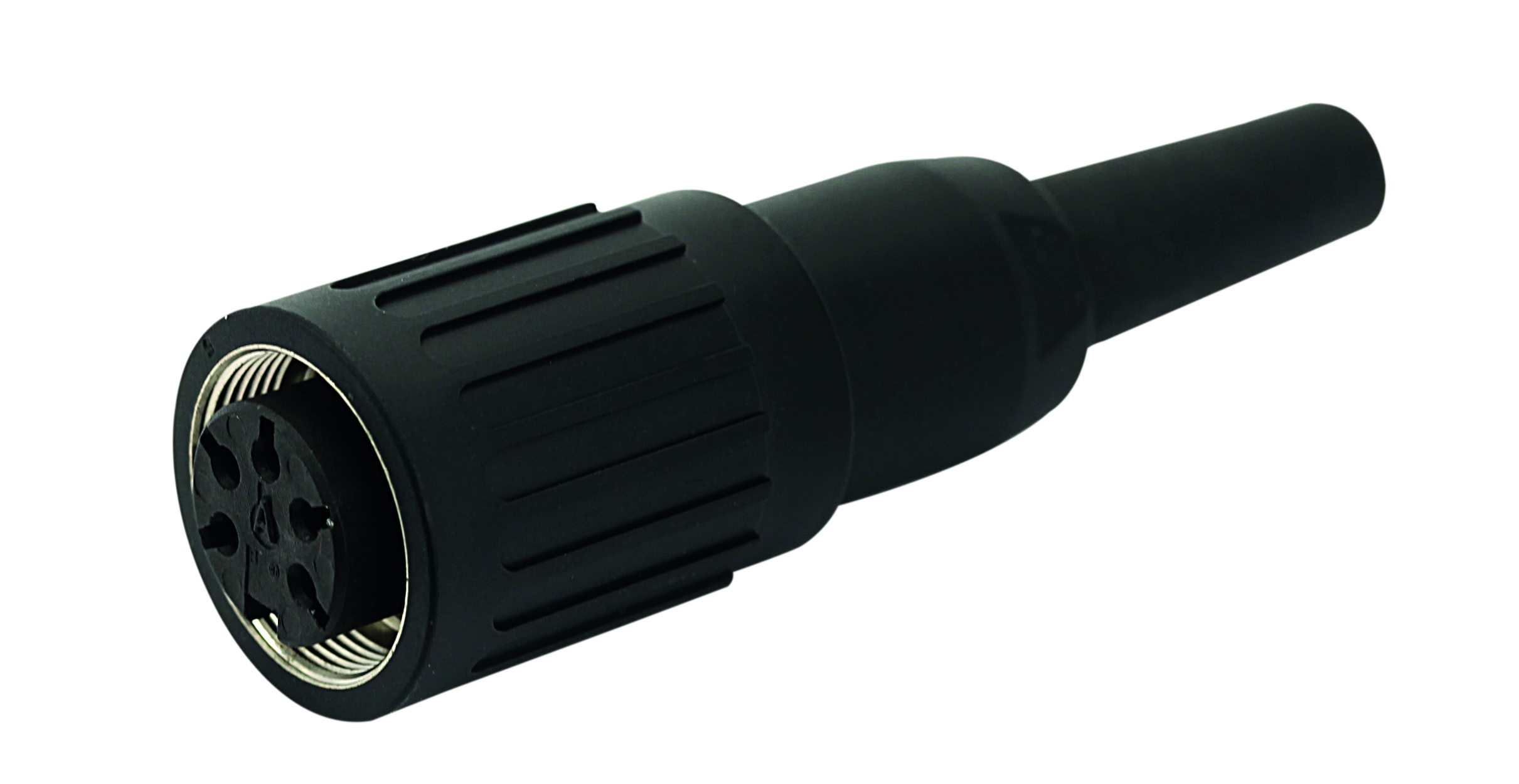

T 3261 013
Specifications
Detailed Description
Introducing the T 3261 013 Female Cable Connector, a high-performance connectivity solution designed for industrial applications. This rugged connector features a durable Die Cast Zinc housing, ensuring reliable operation in harsh environments. With three contacts and a cable mount design, it offers secure and stable connectivity. The solder termination method and silver contact plating guarantee excellent conductivity. Operating efficiently in temperatures ranging from -40°C to 100°C, this IP40-rated connector is built to withstand demanding conditions. Its M16 shell size, screw mating type, and straight mount angle make installation easy. With a 500-cycle mating lifespan, it ensures long-term durability. Shielded for added protection, this connector accommodates 20 AWG wire and supports a current rating of 10A at voltages up to 250V/300V. RoHS compliant and available for immediate shipping, the T 3261 013 is the perfect choice for your circular DIN connectivity needs.
