| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3261 055 |
| Gender: | Female |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 28 - 18 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Right Angle |
| Current Rating: | 10 A |
| Voltage Rating: | 250 V, 300 V |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 3 |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMET 3261 055 |

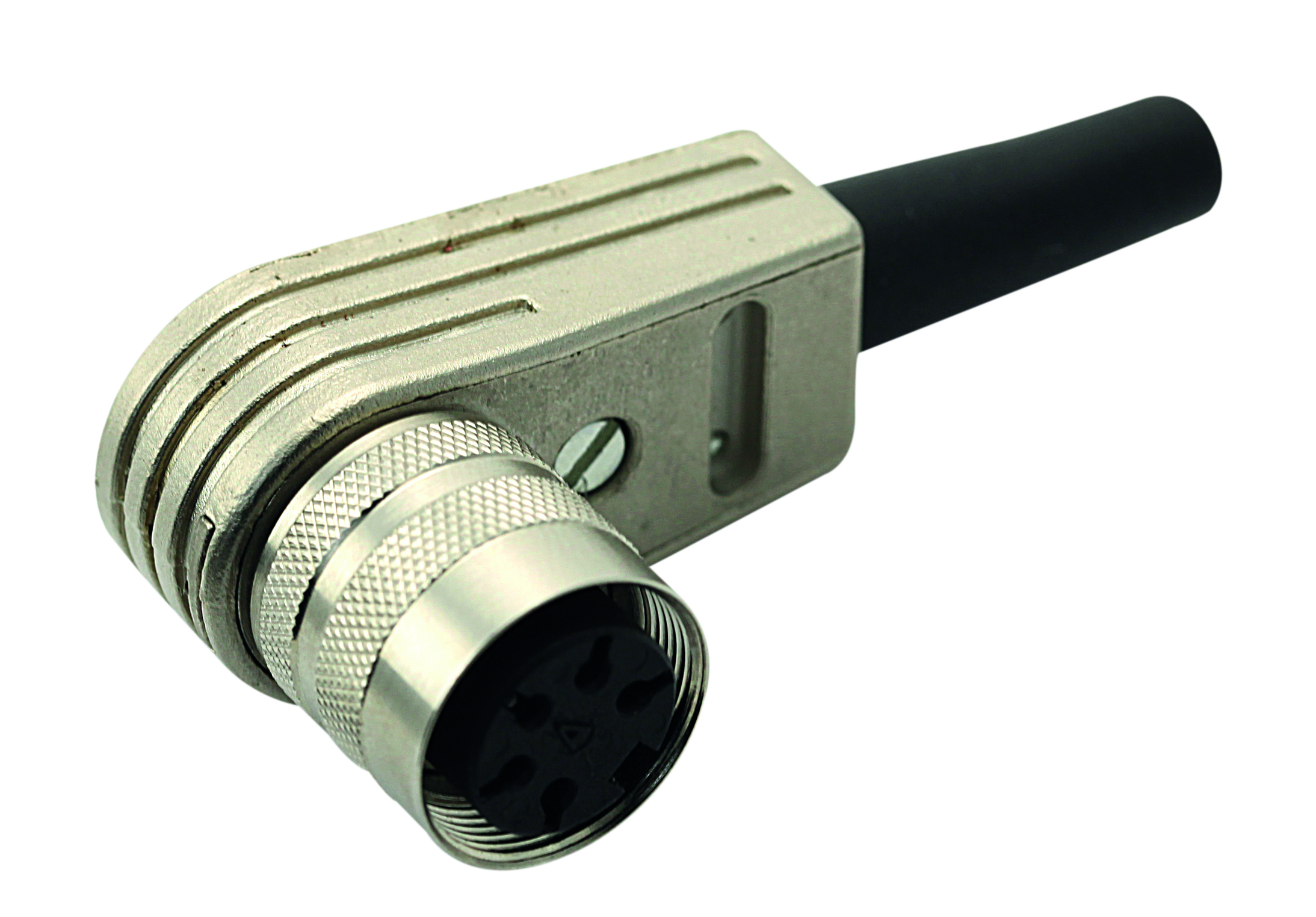

T 3261 055
Specifications
Detailed Description
The T 3261 055 is a high-performance female cable connector designed for reliable and secure connectivity in industrial environments. Featuring a robust die-cast zinc housing, this connector ensures durability even in harsh conditions. With three contacts and a cable mount design, it offers easy installation and efficient signal transmission. The crimp termination method guarantees a stable connection, while the right-angle mount angle allows for flexible positioning. Shielded for added protection, it can accommodate wire sizes ranging from 28 to 18 AWG. Rated for 10A and 250V/300V, this connector is suitable for a wide range of applications. Its IP40 rating certifies dust resistance, making it ideal for use in demanding settings. Meet your connectivity needs with the T 3261 055, a dependable solution for circular DIN connectors.
