| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3263 300 |
| Series: | C091 M16-A |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 3 |
| Mount Type: | Panel Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Mating Type: | Screw |
| Mating Cycles: | 500 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 10 A |
| Voltage Rating: | 300 V |
| SKU: | AMET 3263 300 |

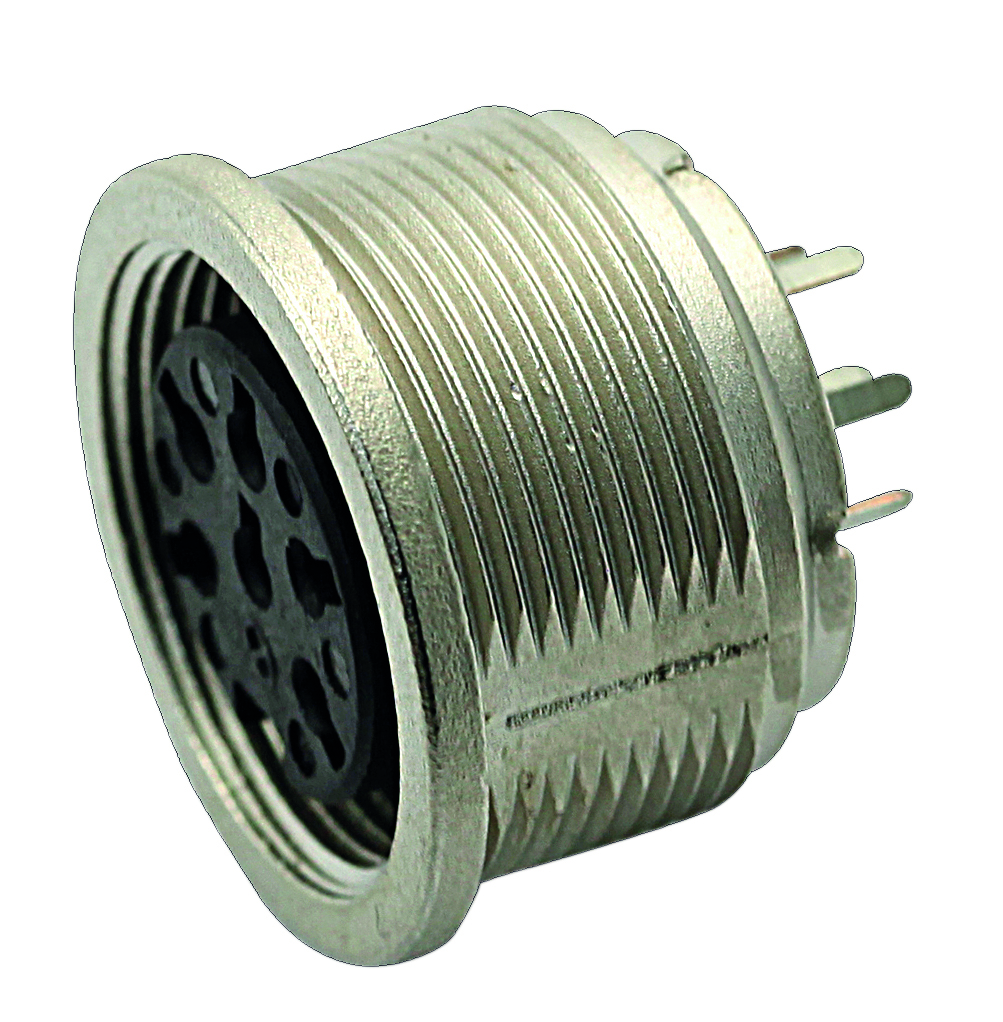

T 3263 300
Specifications
Detailed Description
Introducing the T 3263 300, a high-performance FRONT MOUNTING FEMALE RECEPTACLE from our C091 M16-A series. This female connector, crafted from durable Die Cast Zinc, features 3 contacts for reliable connectivity. Designed for panel mount installation with solder termination, it ensures secure attachment. The Silver contact plating guarantees efficient signal transmission, withstanding temperatures ranging from -40°C to 100°C. With an IP40 rating, it offers protection against dust ingress. The mating type is screw, allowing for easy assembly with a mating cycle of 500. Shielded for enhanced performance, it accommodates 20 AWG wire size and supports a current rating of 10A at 300V. Ideal for circular DIN connectors, this product is a vital component for various connectivity applications. (Note: This product does not have a high-reliability designation)
