| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3263 420 |
| Gender: | Female |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Panel Mount |
| Mating Type: | Screw |
| Mating Cycles: | 500 cycle |
| Current Rating: | 10 A |
| Voltage Rating: | 300 V |
| Contact Plating: | Silver |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 3 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| Series: | C091 M16-A |
| SKU: | AMET 3263 420 |
T 3263 420
Specifications
Detailed Description

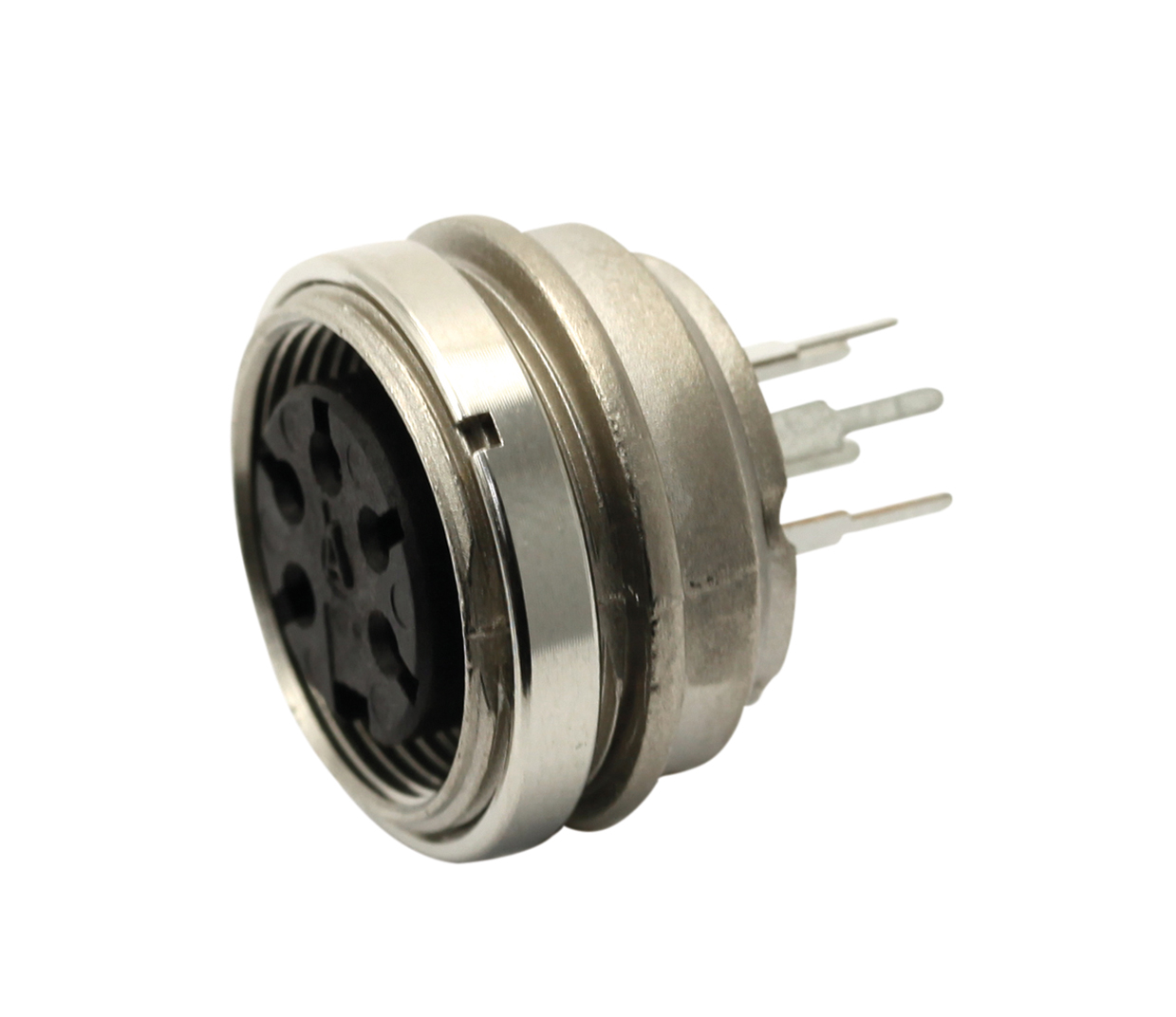

Introducing the T 3263 420, a high-performance rear mounting female receptacle from the C091 M16-A series. Designed for durability and reliability, this connector features a rugged die-cast zinc housing and silver contact plating for optimal conductivity. With three contacts and a panel mount configuration, it offers secure and efficient connectivity. Operating flawlessly in a wide temperature range from -40°C to 100°C, this connector is suitable for diverse environments. Its IP40 rating ensures protection against dust, making it ideal for industrial applications. The screw mating type allows for easy installation, with a lifespan of 500 mating cycles. Shielded for added safety, it accommodates 20 AWG wire size and offers a current rating of 10A and voltage rating of 300V. Perfect for demanding circular DIN connector setups, the T 3263 420 guarantees high performance in critical connectivity tasks.
