| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3274 005 |
| Gender: | Male |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 3 |
| Mount Type: | Cable Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Shell Size: | M16 |
| Mating Type: | Bayonet |
| Mount Angle: | Right Angle |
| Mating Cycles: | 500 cycle |
| Shielded: | No |
| Wire Size: | 20 AWG |
| Current Rating: | 10 A |
| Voltage Rating: | 250 V, 300 V |
| SKU: | AMET 3274 005 |

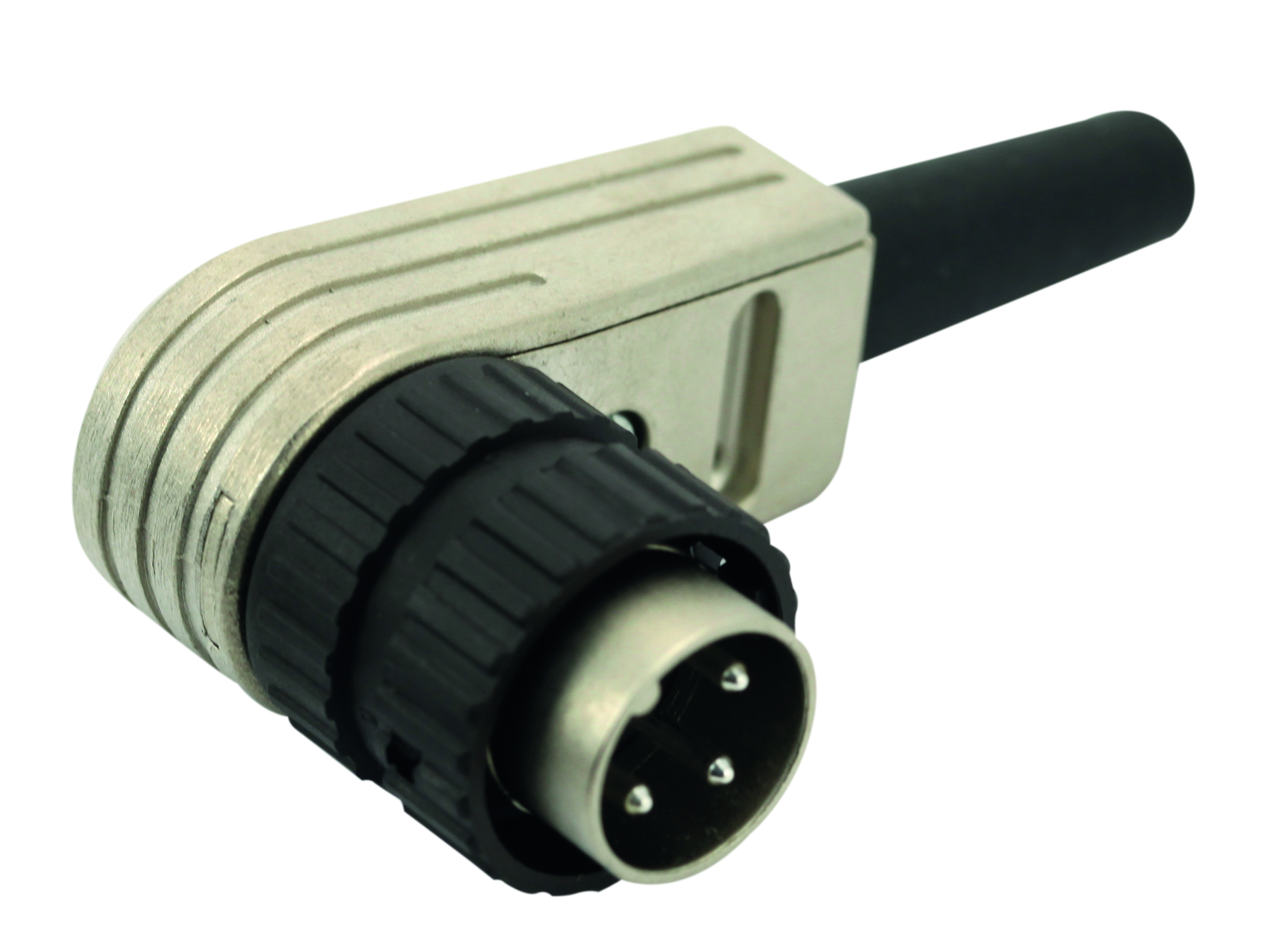

T 3274 005
Specifications
Detailed Description
Introducing the T 3274 005 Male Cable Connector, a high-performance solution for your connectivity needs. With a rugged Die Cast Zinc housing, this connector ensures durability in any environment. Featuring 3 contacts and a Cable Mount design with a Right Angle mount angle, it offers easy and versatile installation. The termination method of solder and silver contact plating guarantee secure and reliable connections. Operating efficiently in temperatures ranging from -40°C to 100°C, with an IP40 rating for protection against dust, this connector is suitable for a wide range of applications. Its M16 shell size and bayonet mating type facilitate quick and efficient mating cycles. With a current rating of 10A and voltage ratings of 250V and 300V, it meets the demands of various power transmission tasks. Ideal for use in Circular DIN Connectors and other industrial applications, the T 3274 005 is a must-have component for your connectivity arsenal.
