| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3278 502 |
| Gender: | Female |
| Shielded: | No |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Current Rating: | 10 A |
| Voltage Rating: | 250 V, 300 V |
| Contact Plating: | Silver |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 3 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMET 3278 502 |

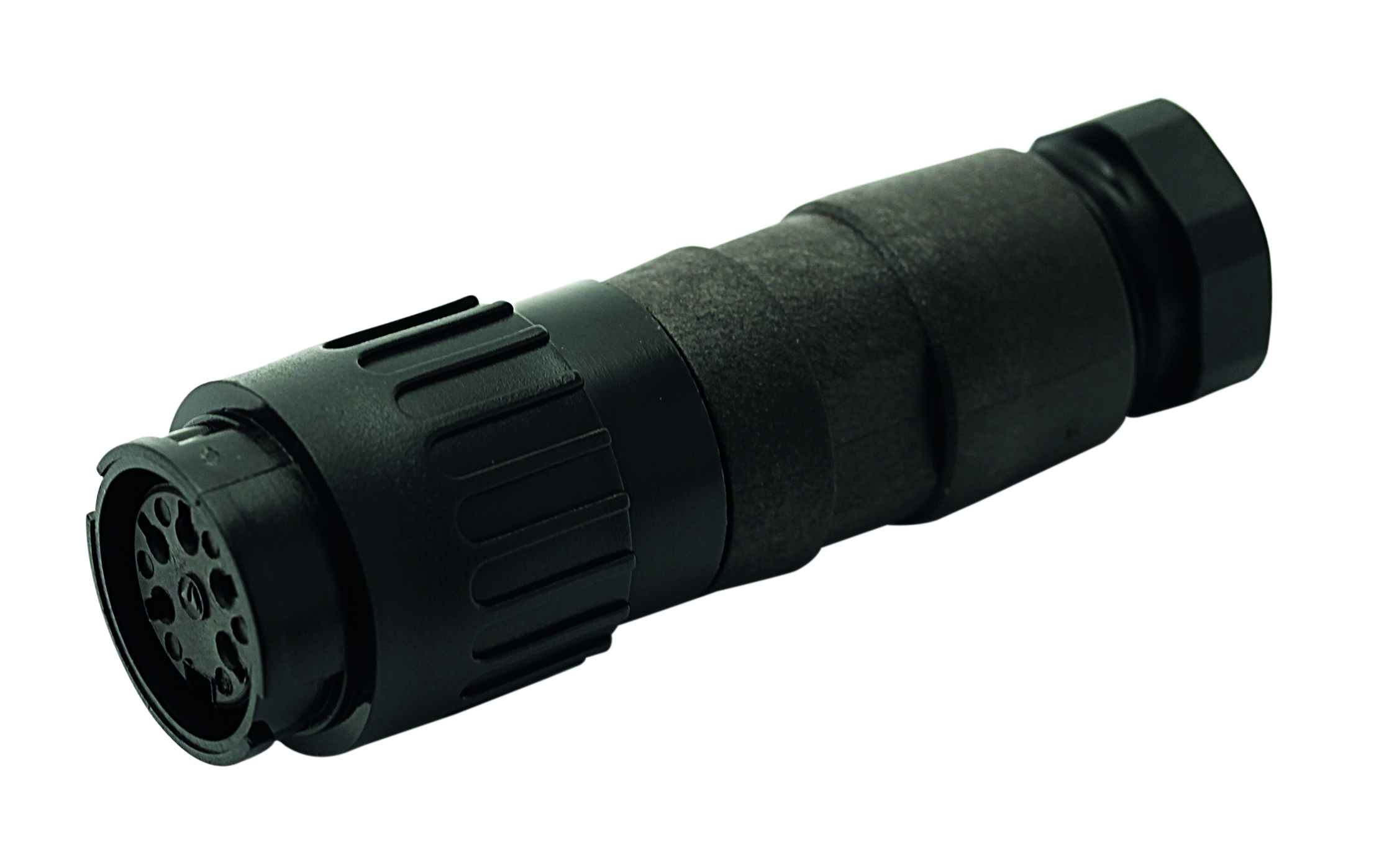

T 3278 502
Specifications
Detailed Description
Introducing the T 3278 502, a female cable connector designed for reliable and secure connections in industrial environments. Constructed with durable die-cast zinc housing, this connector ensures robust performance even in demanding conditions. Featuring three contacts and a cable mount design with solder termination, it offers easy installation and efficient signal transmission. The silver contact plating guarantees excellent conductivity, while the wide operating temperature range of -40°C to 100°C ensures versatility. With an IP40 rating, this connector provides protection against dust and debris. Its M16 shell size, bayonet mating type, and straight mount angle make it suitable for various applications. With a high current rating of 10A and voltage rating of 250V/300V, it meets the demands of industrial connectivity. Perfect for use in circular DIN connectors and other applications, the T 3278 502 is a dependable choice for your connectivity needs.
