| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3300 018 |
| Gender: | Male |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 1000 cycle |
| Current Rating: | 10 A |
| Voltage Rating: | 250 V, 300 V |
| Contact Plating: | Gold |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 4 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMET 3300 018 |

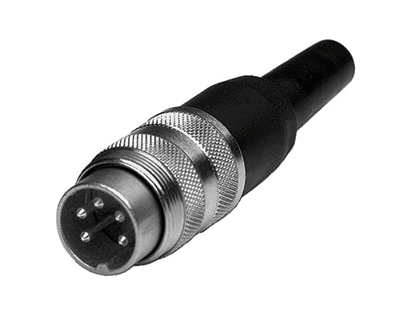

T 3300 018
Specifications
Detailed Description
Introducing the T 3300 018 Male Cable Connector, a robust solution for your connectivity needs. Crafted with a durable Die Cast Zinc housing, this connector ensures reliable performance in various environments. Featuring 4 gold-plated contacts and a straight cable mount termination, it guarantees secure and efficient solder connections. With an IP40 rating, it offers protection against dust and debris. Operating between -40°C to 100°C, it's suitable for a wide range of applications. The M16 shell size, screw mating type, and shielded design make it ideal for industrial use. With a 10A current rating and 250V/300V voltage rating, it meets high power demands. RoHS compliant and offering 1000 mating cycles, this connector is both environmentally friendly and durable. Upgrade to the T 3300 018 for superior connectivity performance.
