| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3303 000 |
| Gender: | Female |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Panel Mount |
| Mating Type: | Screw |
| Mating Cycles: | 500 cycle |
| Current Rating: | 10 A |
| Voltage Rating: | 300 V |
| Contact Plating: | Silver |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 4 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| Series: | C091 M16-A |
| SKU: | AMET 3303 000 |
T 3303 000
Specifications
Detailed Description

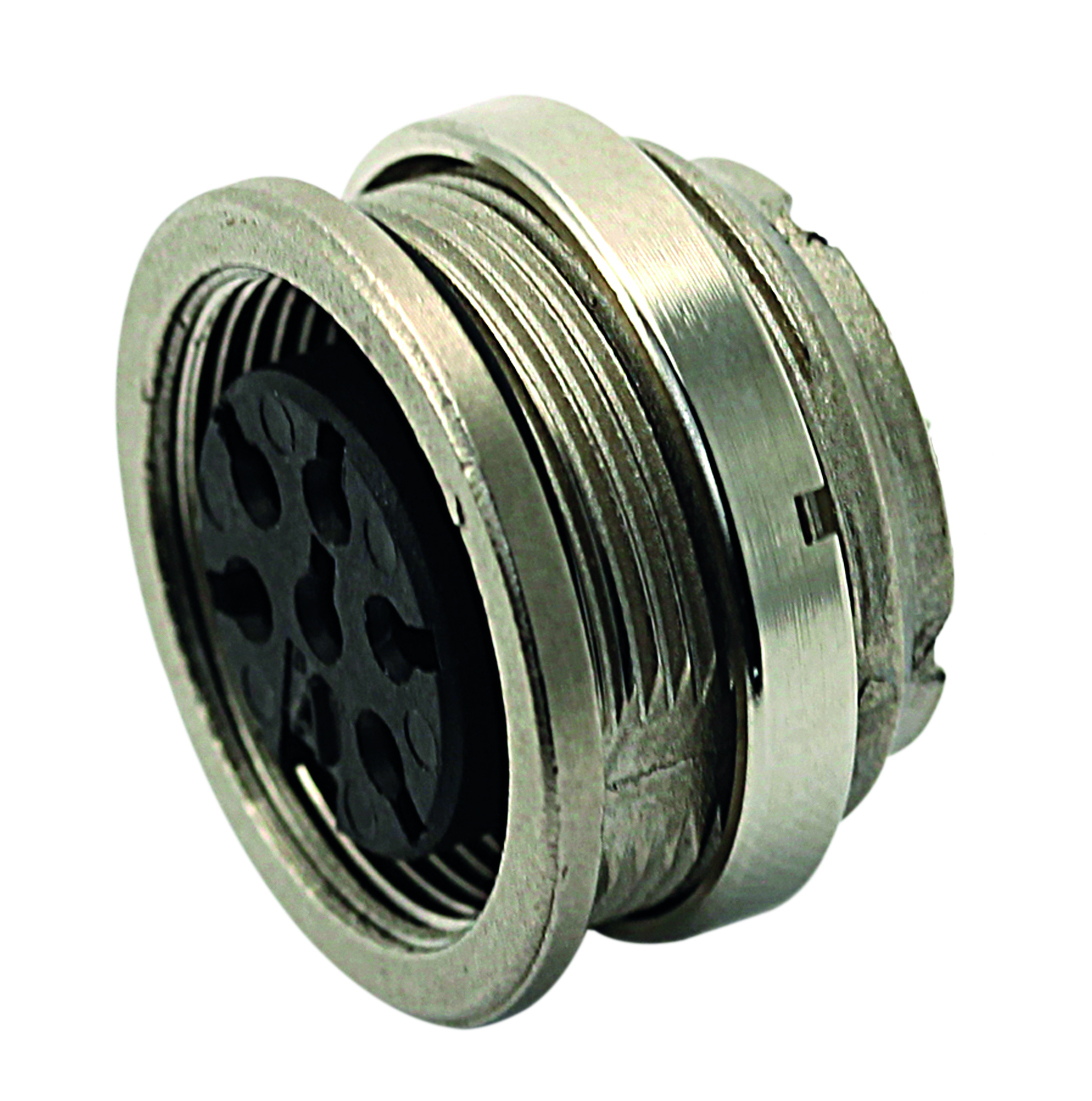

Introducing the FEMALE RECEPTACLE 4 WAY C091A, a robust circular connector from the C091 M16-A series. Designed for industrial applications, this connector features a durable Die Cast Zinc housing ensuring reliable performance in harsh environments. With four silver-plated contacts, it guarantees secure and efficient signal transmission. Its panel mount configuration with solder termination method offers easy installation. Meeting IP40 standards, it provides protection against dust and debris. The screw mating type allows for a secure connection, rated for up to 500 mating cycles. With a wire size of 20 AWG, it can handle a current rating of 10A at 300V. RoHS compliant, this connector is environmentally friendly. Perfect for high-reliability applications, the FEMALE RECEPTACLE 4 WAY C091A is the ideal choice for your connectivity needs.
