| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3303 018 |
| Series: | C091 M16-A |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 4 |
| Mount Type: | Panel Mount |
| Termination Method: | Solder |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Mating Type: | Screw |
| Mating Cycles: | 1000 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 10 A |
| Voltage Rating: | 300 V |
| SKU: | AMET 3303 018 |

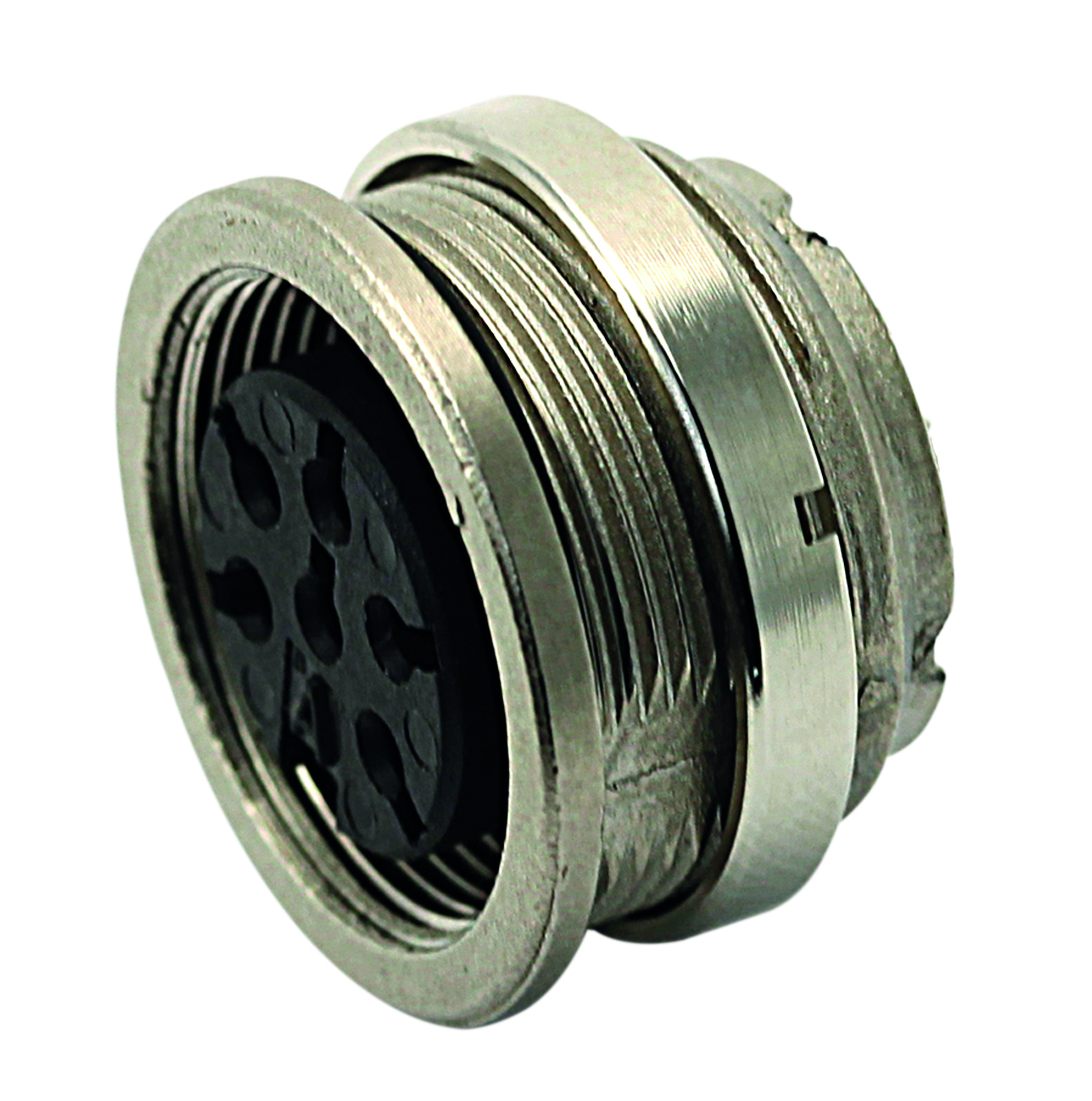

T 3303 018
Specifications
Detailed Description
Introducing the T 3303 018, a high-performance FRONT MOUNTING FEMALE RECEPTACLE designed for seamless connectivity in industrial environments. Part of the rugged C091 M16-A series, this female connector boasts a durable Die Cast Zinc housing, ensuring reliability in demanding applications. With 4 gold-plated contacts and a solder termination method, it guarantees efficient signal transmission. Rated for a wide temperature range from -40°C to 100°C and IP40 ingress protection, it offers robust performance even in harsh conditions. Featuring a panel mount design and shielded construction, it provides secure and interference-free connections. Suitable for 20 AWG wire, this connector has a current rating of 10A and voltage rating of 300V, making it ideal for power and signal applications. With a mating type of screw and a durability of 1000 cycles, it guarantees long-term functionality. The T 3303 018 is the ultimate solution for your circular connector needs, delivering unmatched quality and performance in every use case.
