| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3303 320 |
| Series: | C091 M16-A |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 4 |
| Mount Type: | Panel Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Mating Type: | Screw |
| Mating Cycles: | 500 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 10 A |
| Voltage Rating: | 300 V |
| SKU: | AMET 3303 320 |
T 3303 320
Specifications
Detailed Description

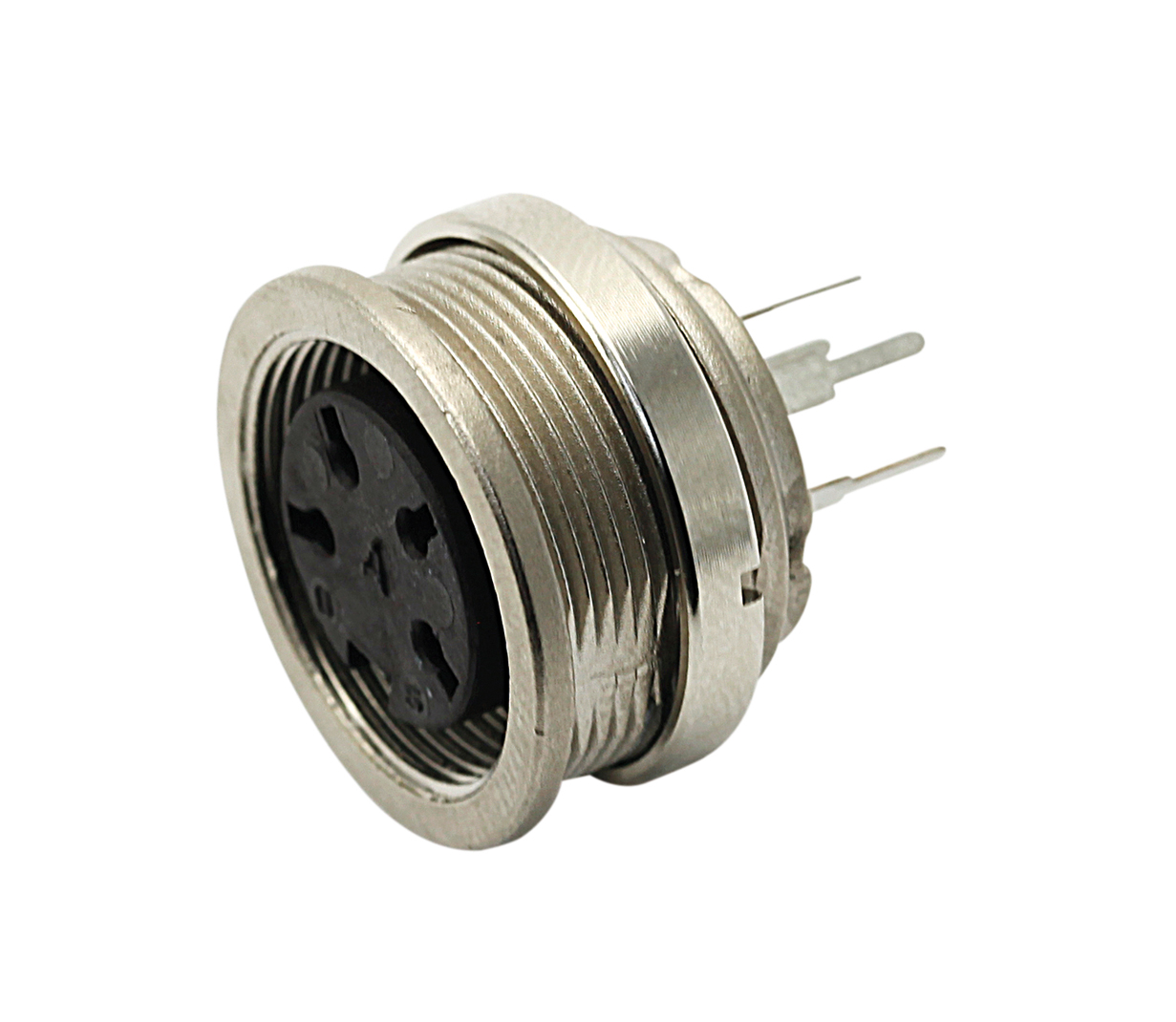

Introducing the C091 M16-A FEMALE RECEPTACLE 4 WAY C091A, a rugged and reliable circular DIN connector designed for demanding industrial applications. With a die-cast zinc housing and silver contact plating, this connector ensures secure and efficient signal transmission even in harsh environments. Featuring a panel mount and solder termination method, installation is quick and easy. Rated for a maximum operating temperature of 100°C and a minimum of -40°C, it offers durability in extreme conditions. With an IP40 rating and shielded design, it provides excellent protection against dust and interference. Suitable for use with 20 AWG wire, it has a current rating of 10A and a voltage rating of 300V, making it ideal for power and signal connections. RoHS compliant and with a mating cycle of 500, this connector guarantees long-lasting performance. Upgrade your connectivity with the C091 M16-A FEMALE RECEPTACLE 4 WAY C091A.
