| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3324 058 |
| Gender: | Male |
| Shielded: | No |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Bayonet |
| Mount Angle: | Right Angle |
| Mating Cycles: | 1000 cycle |
| Current Rating: | 10 A |
| Voltage Rating: | 250 V, 300 V |
| Contact Plating: | Gold |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 4 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMET 3324 058 |
T 3324 058
Specifications
Detailed Description

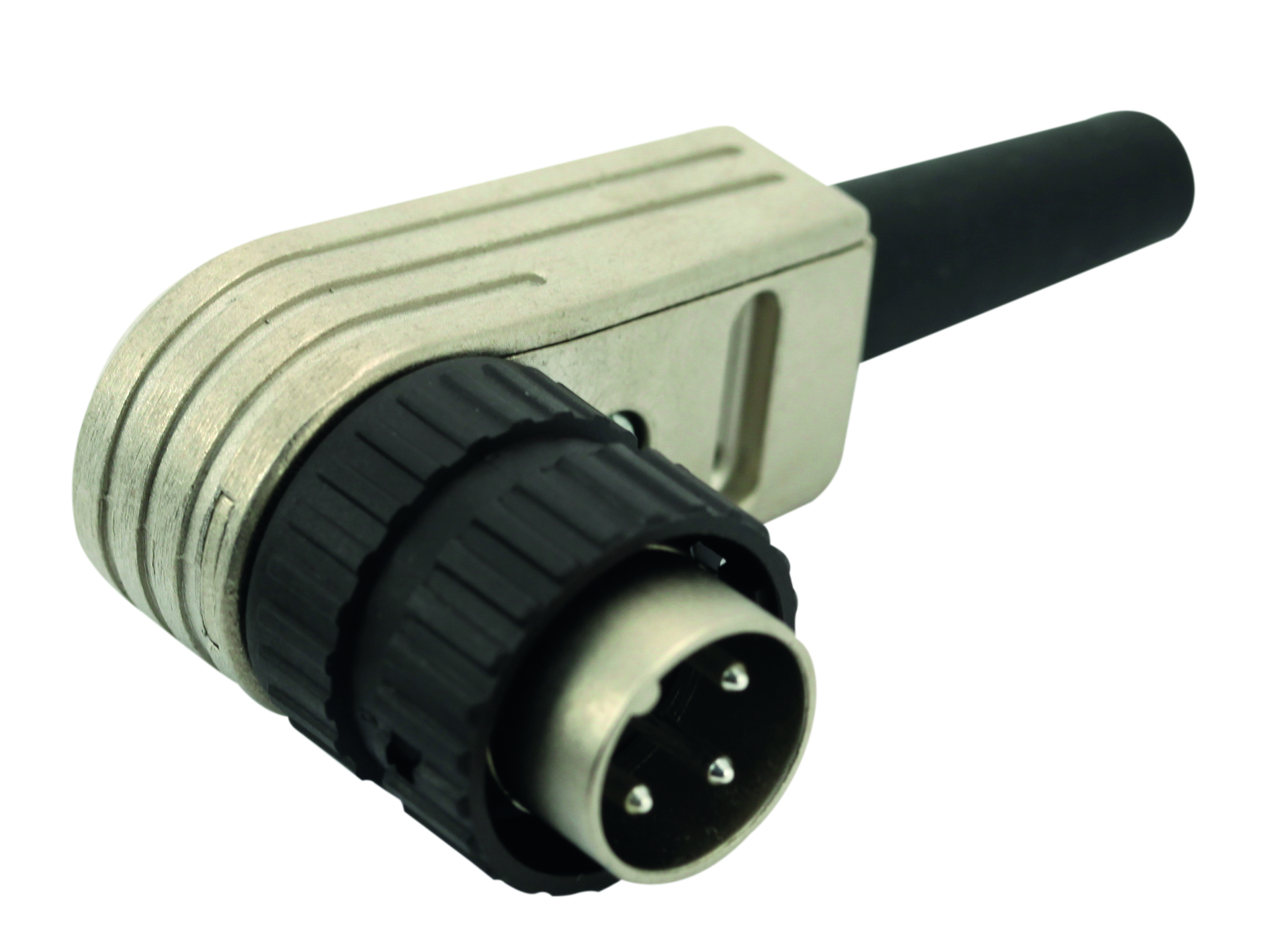

Introducing the T 3324 058, a robust male cable connector designed for demanding industrial environments. Crafted from high-quality die-cast zinc, this connector ensures durability and reliable performance. With four gold-plated contacts and a solder termination method, it guarantees secure and efficient connectivity. Operating smoothly in temperatures ranging from -40°C to 100°C, it is suitable for a wide range of applications. Featuring an IP40 rating, M16 shell size, and bayonet mating type, it offers easy and secure installation. The right-angle mount type and 20 AWG wire size make it versatile for various setups. With a current rating of 10A and voltage rating of 250V/300V, this connector meets the highest standards of quality and safety. Perfect for Circular DIN Connector applications, the T 3324 058 is a reliable choice for your connectivity needs.
