| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3326 500 |
| Gender: | Male |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Panel Mount |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Current Rating: | 10 A |
| Voltage Rating: | 300 V |
| Contact Plating: | Silver |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 4 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| Series: | C091 M16-B |
| SKU: | AMET 3326 500 |

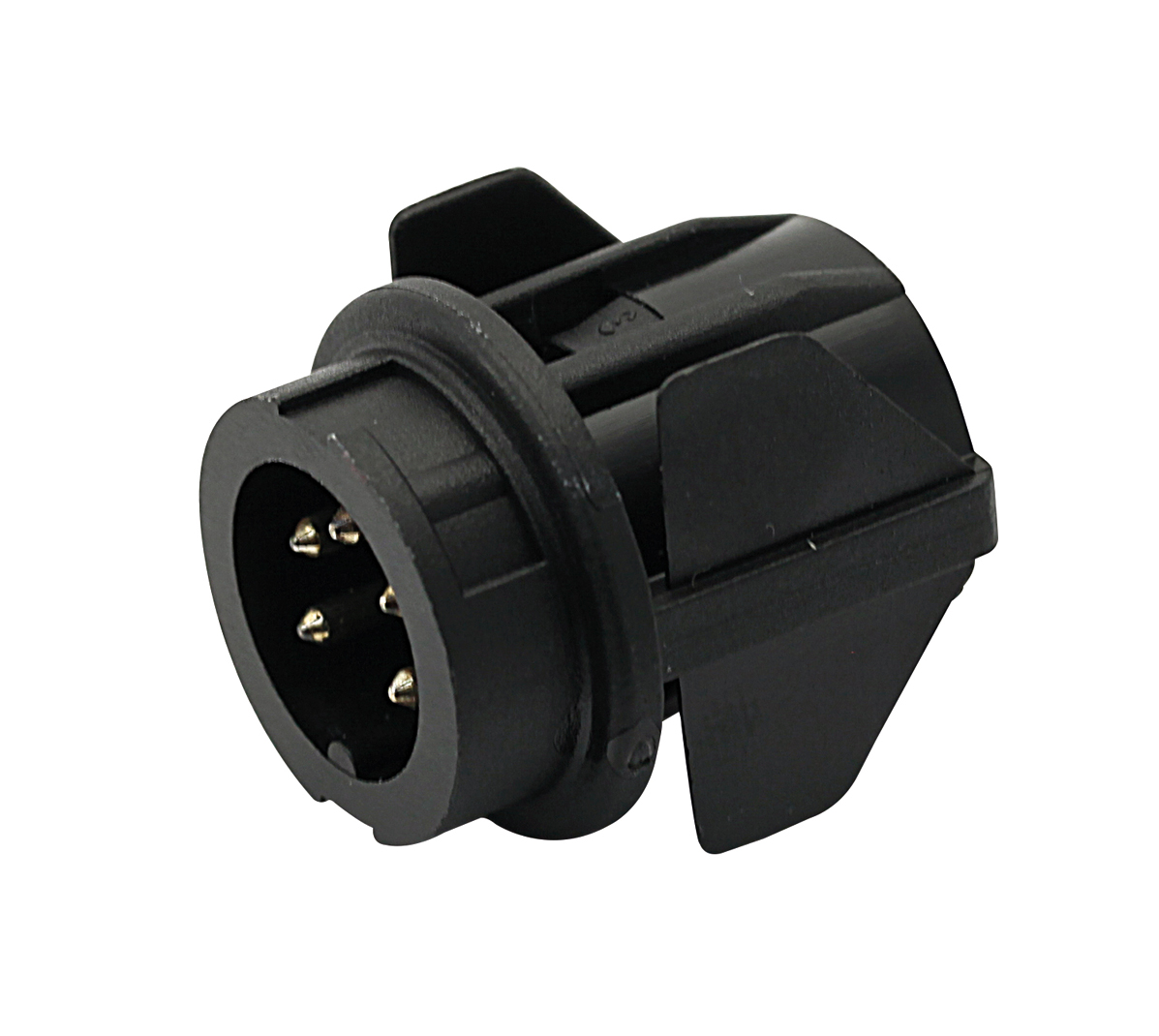

T 3326 500
Specifications
Detailed Description
Introducing the T 3326 500, a robust and reliable circular DIN connector designed for demanding industrial applications. With a straight, full plastic front and male gender, this connector is part of the C091 M16-B series, boasting a sturdy die-cast zinc housing for optimal performance. Featuring four silver-plated contacts and a solder termination method, it ensures secure and efficient connectivity. Operating smoothly in temperatures ranging from -40°C to 100°C, with an IP40 rating for protection against dust, this connector is built to withstand harsh environments. With a bayonet mating type, straight mount angle, and 500 mating cycles durability, it offers long-lasting functionality. Suitable for use with 20 AWG wire, it has a current rating of 10A and a voltage rating of 300V. Ideal for power and signal transmission, the T 3326 500 is a key component in ensuring seamless connectivity in industrial settings.
