| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3328 502 |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 4 |
| Mount Type: | Cable Mount |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Shell Size: | M16 |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Shielded: | No |
| Wire Size: | 20 AWG |
| Current Rating: | 10 A |
| Voltage Rating: | 250 V, 300 V |
| SKU: | AMET 3328 502 |

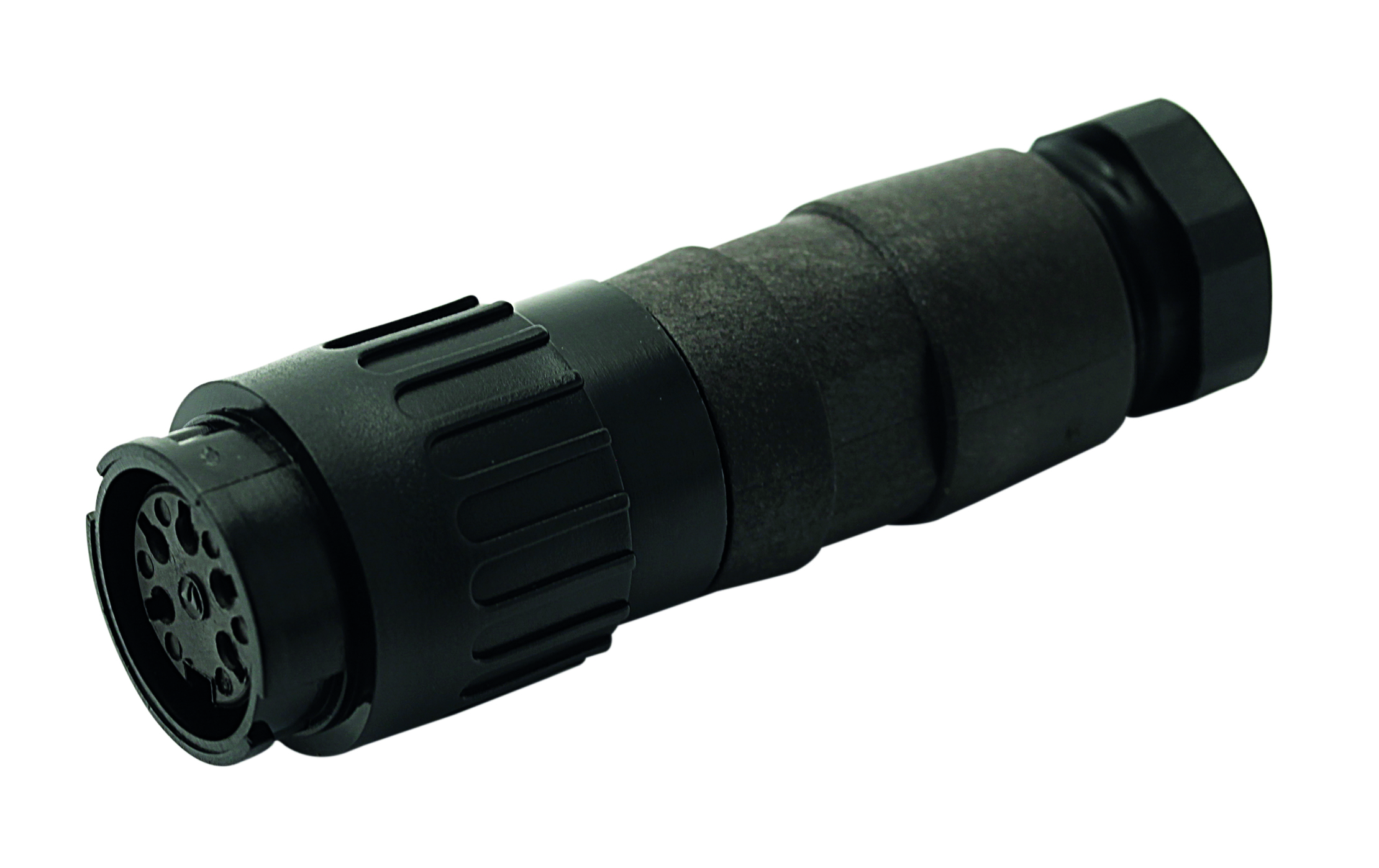

T 3328 502
Specifications
Detailed Description
Introducing the T 3328 502, a high-performance Female Cable Connector designed for seamless connectivity in industrial environments. Crafted from robust Die Cast Zinc, this connector ensures durability even in harsh conditions. With 4 contacts and a Cable Mount configuration, it offers reliable signal transmission. The Solder termination method and Silver contact plating guarantee excellent conductivity. Operating efficiently in temperatures ranging from -40°C to 100°C, it is suitable for diverse applications. Featuring an IP40 rating, it provides protection against dust and debris. Its M16 shell size, Bayonet mating type, and Straight mount angle facilitate easy installation. With a 500-cycle mating lifespan, this connector offers long-term performance. Its 20 AWG wire size, 10A current rating, and 250V/300V voltage rating make it ideal for power and signal transmission. Perfect for Circular DIN connectors, it meets the highest standards of quality and reliability. Upgrade your connectivity with the T 3328 502.
