| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3357 028 |
| Gender: | Female |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 5 |
| Mount Type: | Cable Mount |
| Termination Method: | Solder |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP40 |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 1000 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 100 V, 250 V |
| SKU: | AMET 3357 028 |
T 3357 028
Specifications
Detailed Description

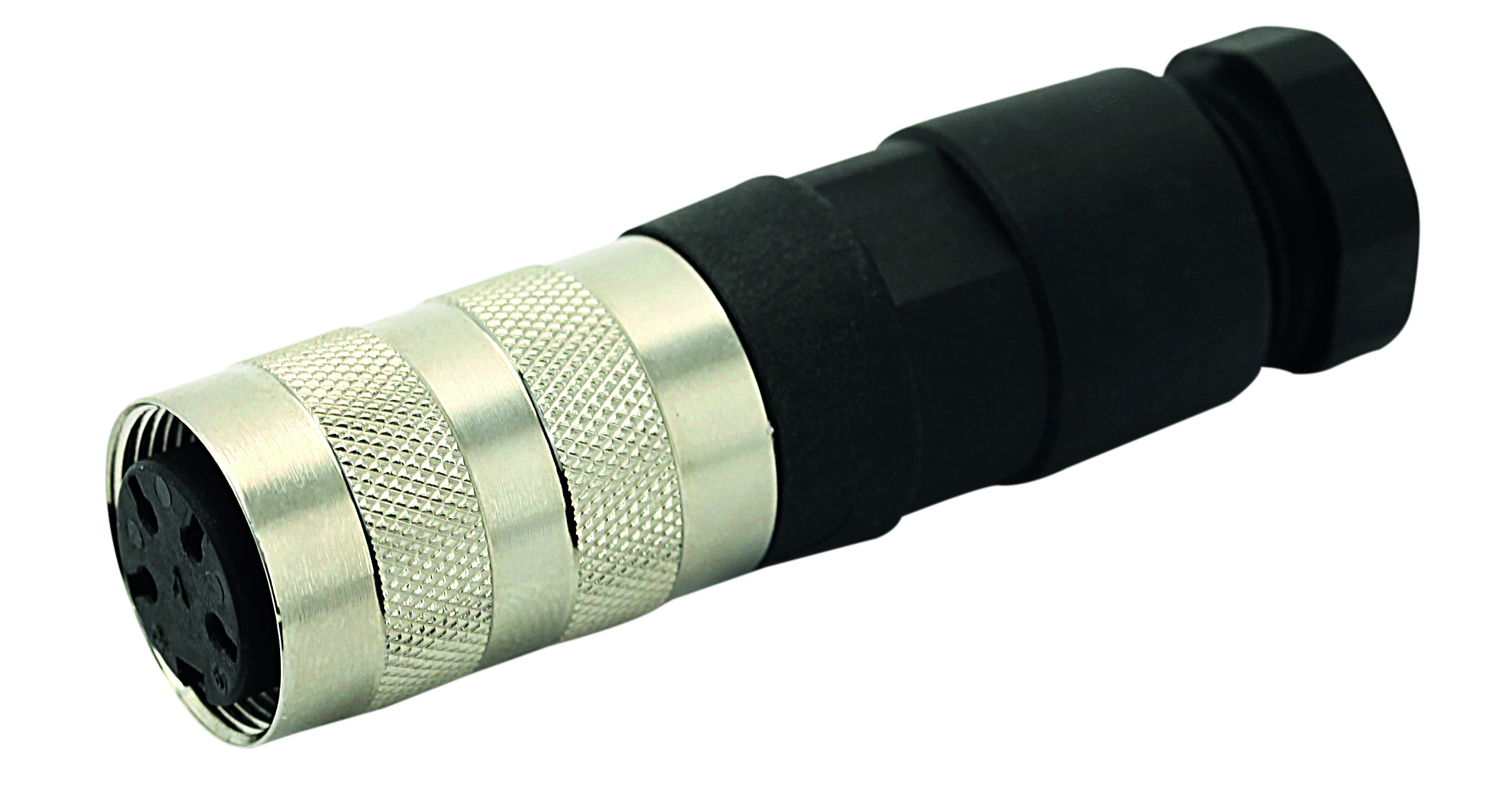

Introducing the T 3357 028, a high-performance Female Cable Connector designed for seamless connectivity in industrial applications. Constructed with robust Die Cast Zinc housing, this connector ensures durability in demanding environments. With 5 gold-plated contacts and a solder termination method, it guarantees reliable signal transmission. Operating flawlessly in temperatures ranging from -40°C to 100°C and boasting an IP40 rating, it offers resilience against harsh conditions. The M16 shell size, straight mount angle, and screw mating type facilitate easy installation. Shielded for enhanced signal integrity, it accommodates 20 AWG wire, supporting a current rating of 7A at voltages up to 250V. RoHS compliant and with a lifespan of 1000 mating cycles, the T3357028 is a trusted solution for your circular DIN connector needs.
