| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3359 330 |
| Gender: | Female |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Panel Mount |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Current Rating: | 7 A |
| Voltage Rating: | 100 V |
| Contact Plating: | Silver |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 5 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| Series: | C091 M16-A |
| SKU: | AMET 3359 330 |

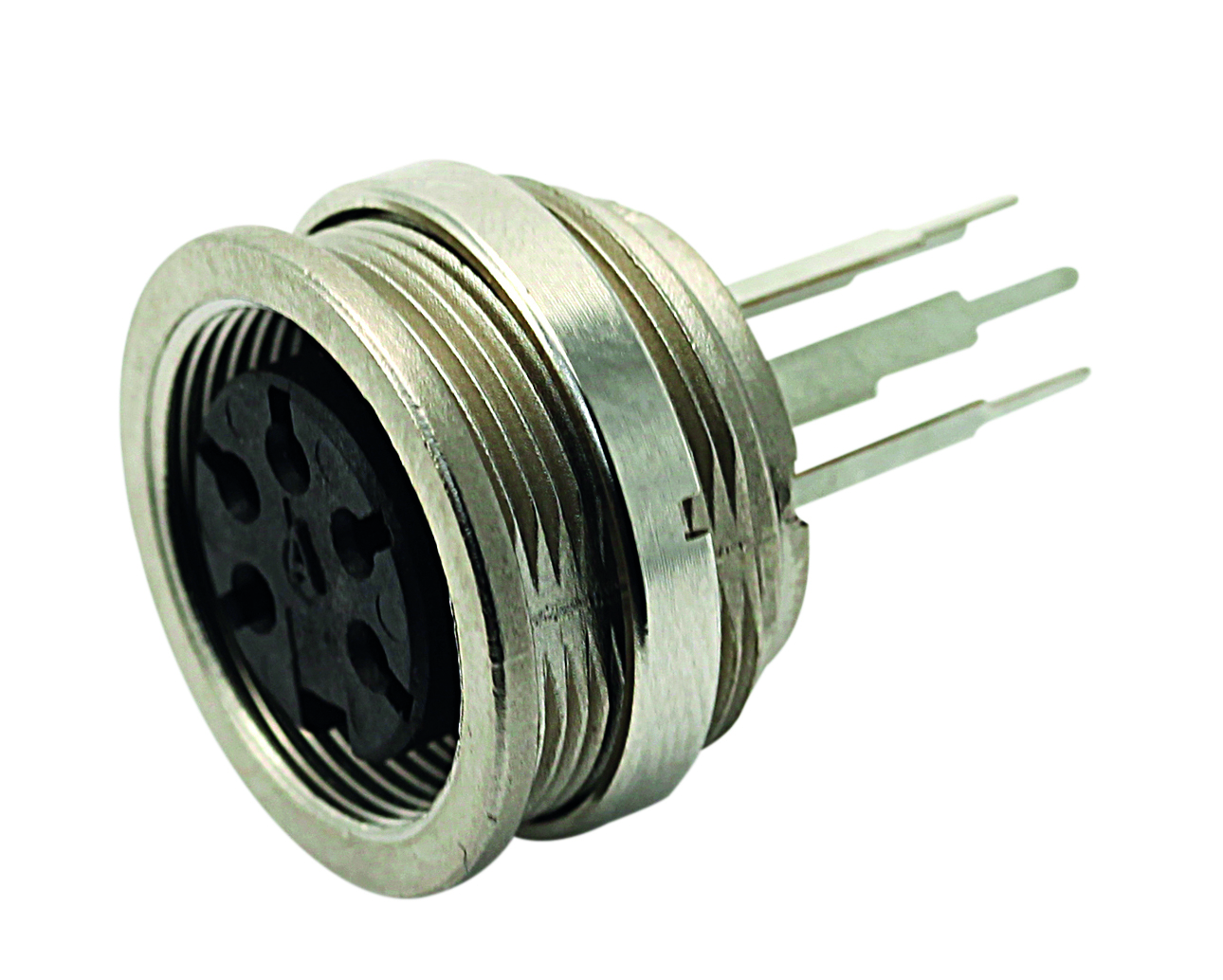

T 3359 330
Specifications
Detailed Description
Introducing the T 3359 330, a robust FRONT MOUNTING FEMALE RECEPTACLE designed for reliable connectivity in demanding environments. Part of the C091 M16-A series, this connector features a durable Zinc Die Cast housing, ensuring long-lasting performance. With 5 silver-plated contacts and a maximum operating temperature of 100°C, it guarantees efficient signal transmission even in high-temperature conditions. The Panel Mount design with solder termination method offers secure attachment, while its IP40 rating provides protection against dust. Ideal for industrial applications, this connector, with a straight mount angle, is rated for 500 mating cycles, ensuring durability. Shielded for added security, it accommodates 20 AWG wire size, with a current rating of 7A and voltage rating of 100V. Whether in machinery, automation, or telecommunications, the T 3359 330 is a reliable solution for your connectivity needs.
