| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3361 013 |
| Gender: | Female |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Current Rating: | 7 A |
| Voltage Rating: | 250 V, 300 V |
| Contact Plating: | Silver |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 5 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMET 3361 013 |
T 3361 013
Specifications
Detailed Description

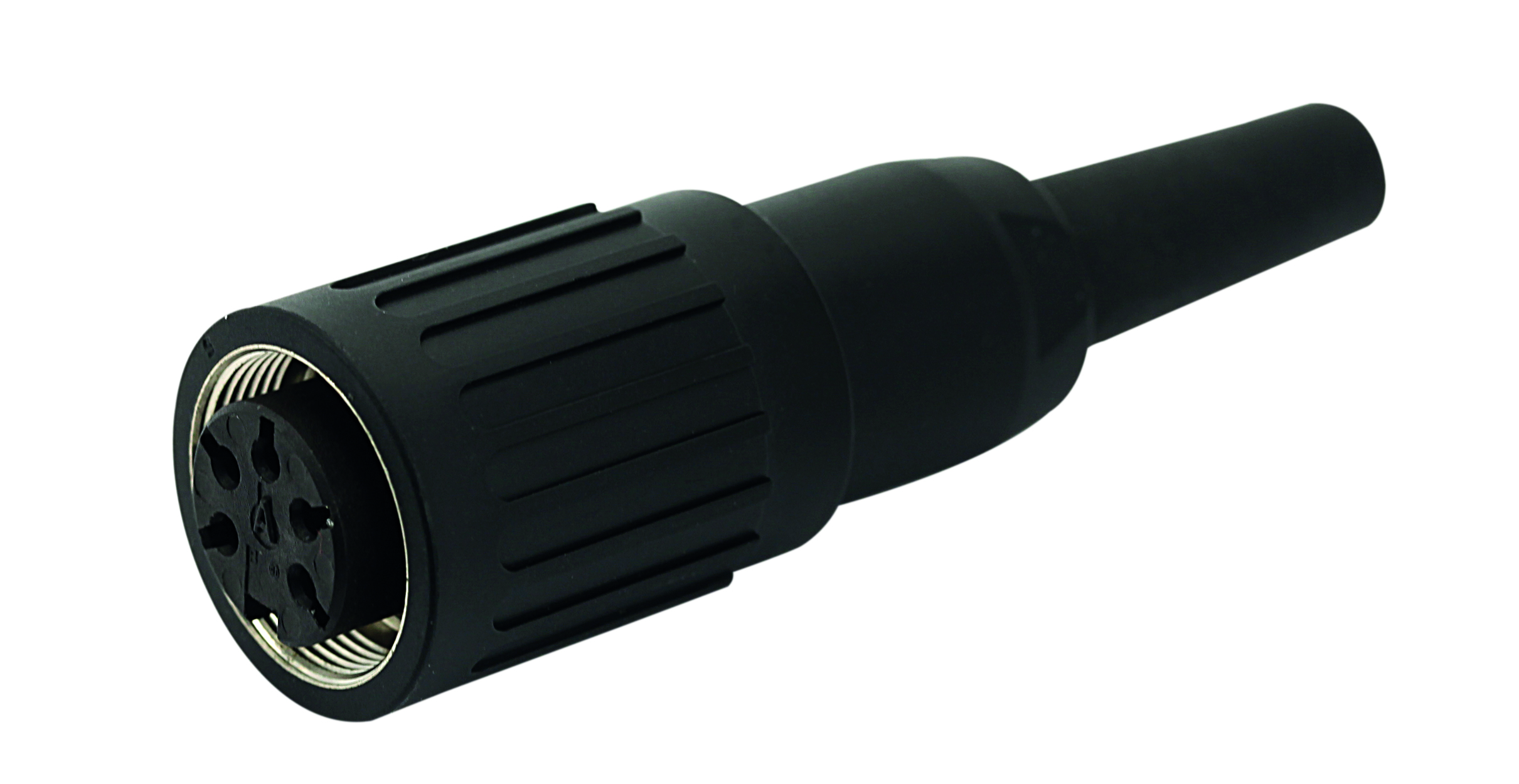

Introducing the T 3361 013, a female cable connector designed for seamless connectivity in demanding industrial environments. Crafted with a robust die-cast zinc housing, this connector ensures durability and reliability in all applications. With five contacts and a cable mount design, it facilitates secure and efficient connections. The silver contact plating guarantees excellent conductivity, while the solder termination method offers easy installation. Operating flawlessly in temperatures ranging from -40°C to 100°C, and with an IP40 rating for dust protection, it is suitable for a wide range of settings. The M16 shell size, straight mount angle, and screw mating type further enhance its versatility. Shielded for added protection, and compliant with RoHS standards, this connector guarantees both performance and environmental responsibility. With a wire size capacity of 20 AWG, current rating of 7A, and voltage rating of 250V/300V, it meets the most stringent requirements. Whether in aerospace, defense, or telecommunications, the T 3361 013 is the ideal choice for secure and reliable connectivity.
